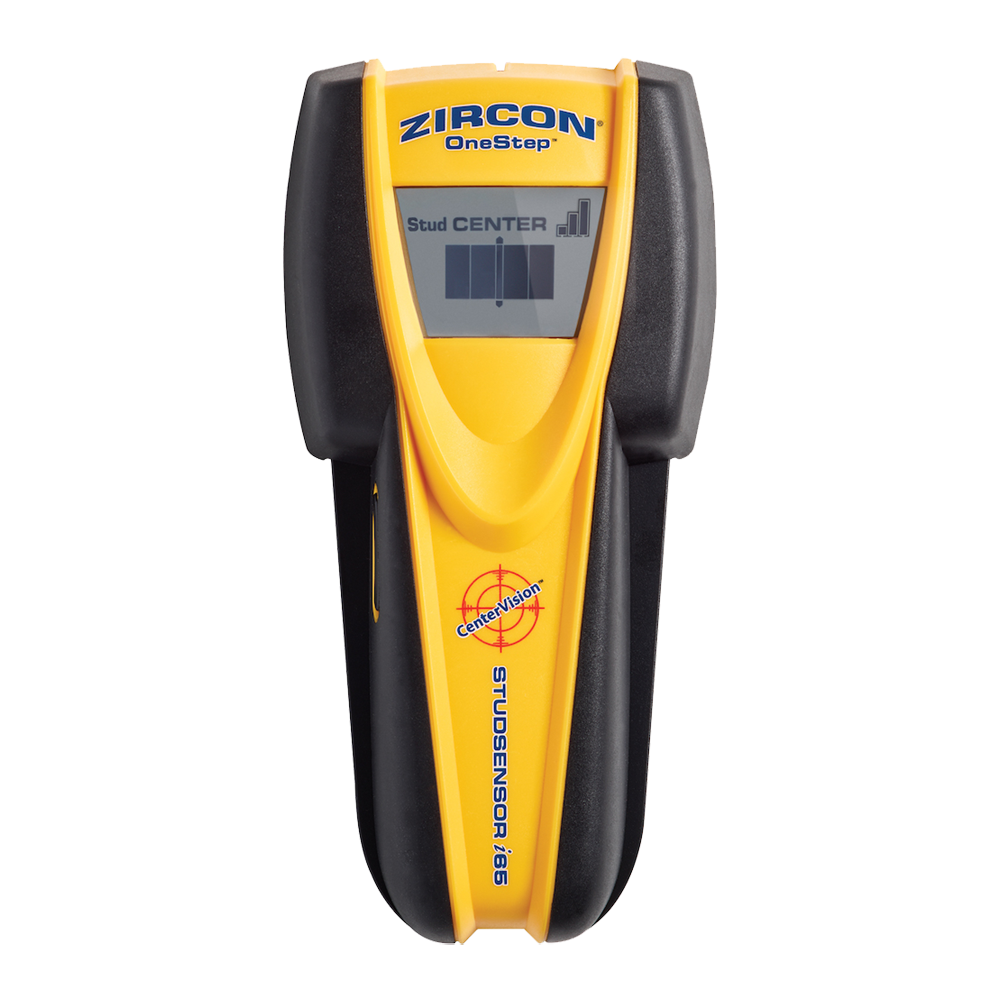

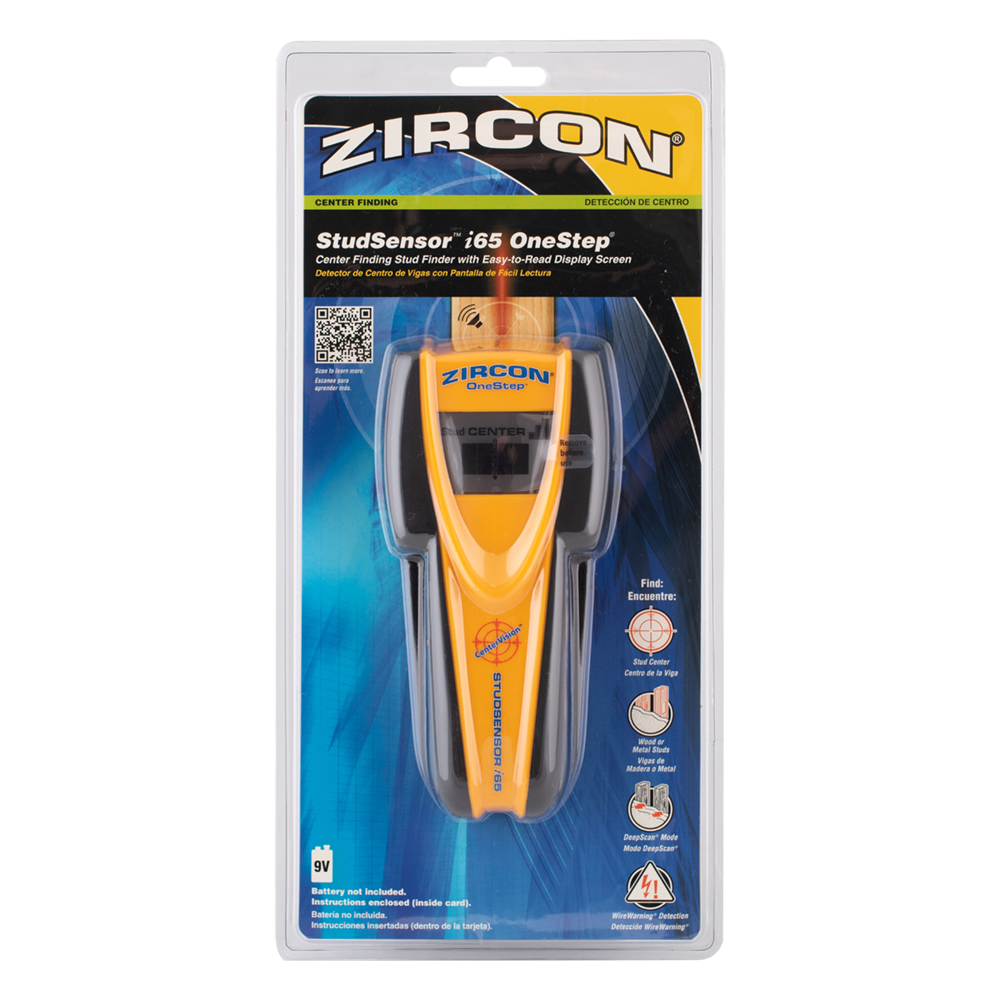

ZN-I65 | Zircon #i65 STUD SENSOR / CENTRE FINDER
Center Finding Stud Finder with Easy-to-Read Display Screen

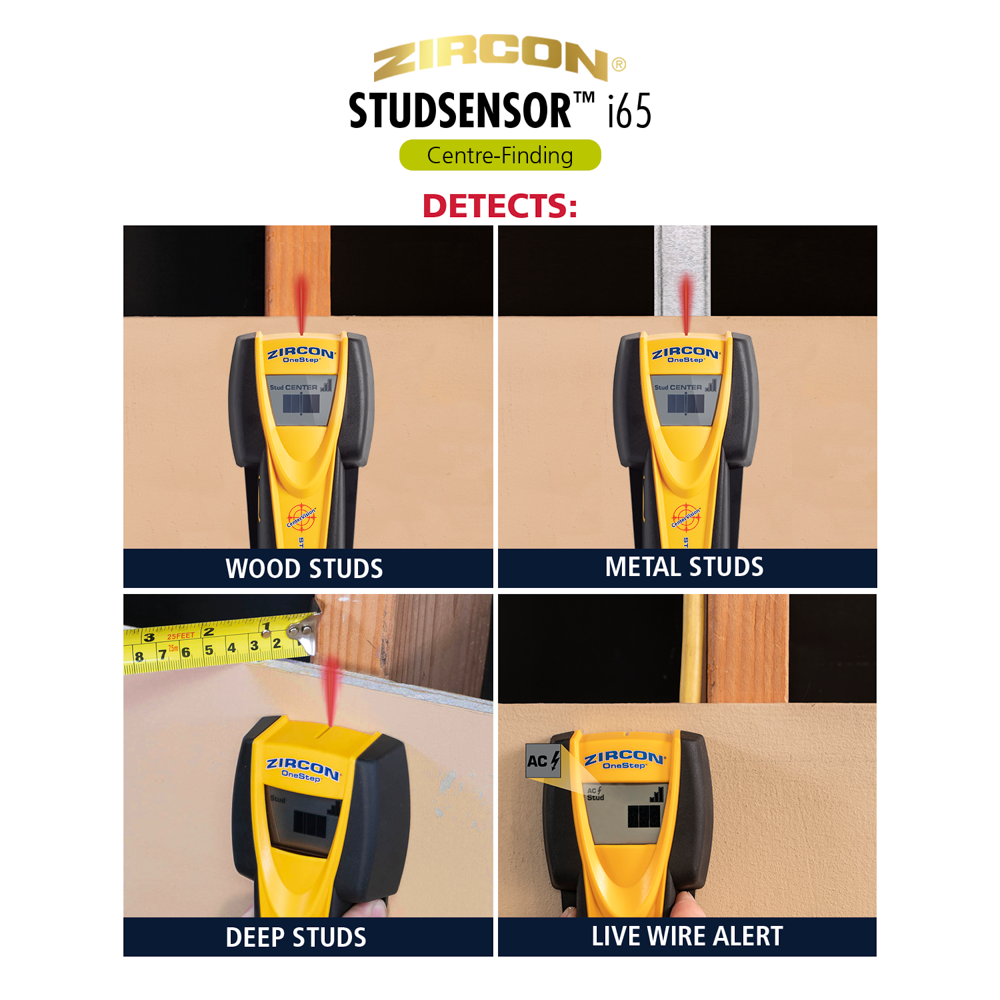

StudSensor i65 OneStep quickly and easily locates the edges and center of wood and metal studs and joists behind walls, floors, and ceilings. Patented CenterVision technology finds the center of studs in a single pass. Its easy-to-read display screen indicates directions, edges and center of studs, while WireWarning detection indicates the presence of live AC voltage.
Features:
StudScan mode locates the edges and center of wood or metal studs up to 3/4 in. (19 mm) deep
DeepScan mode doubles the scanning depth to 11/2 in. (38 mm)
LCD display indicates direction, edges, and center of studs
Patented SpotLite Pointing System and audio tone signals when the stud center is reached
WireWarning Detection indicates the presence of live, unshielded electrical wiring up to 2 in. (51 mm) deep
ACT (Auto Correcting Technology) automatically corrects common user errors, such as when scanning begins over a stud
Specifications:
Dimensions: 158mm x 77mm x 34mm
Weight: 161g (without battery)
Battery Type: 9V alkaline (not included)
Depth: StudScan mode is up to 19mm and DeepScan mode is up to 38mm
Position Accuracy: Up to a depth of 19mm is within 3mm for center, and 5mm for edge. Up to a depth of 38mm is within 6mm for center
WireWarning Position Accuracy: Typically 90-250 V at 50-60 Hz within 6 in. (152 mm) of a hot unshielded wire in drywall
WireWarning Depth: In typical wall with Romex wiring, wire can be detected up to 2 in. (51 mm) deep
Operating Temperature: -7 to 41C
Storage Temperature: -29 to 66C
Humidity: 5 - 90% RH (non-condensing)
Water Resistance: Splash and water resistant, not waterproof
