Description

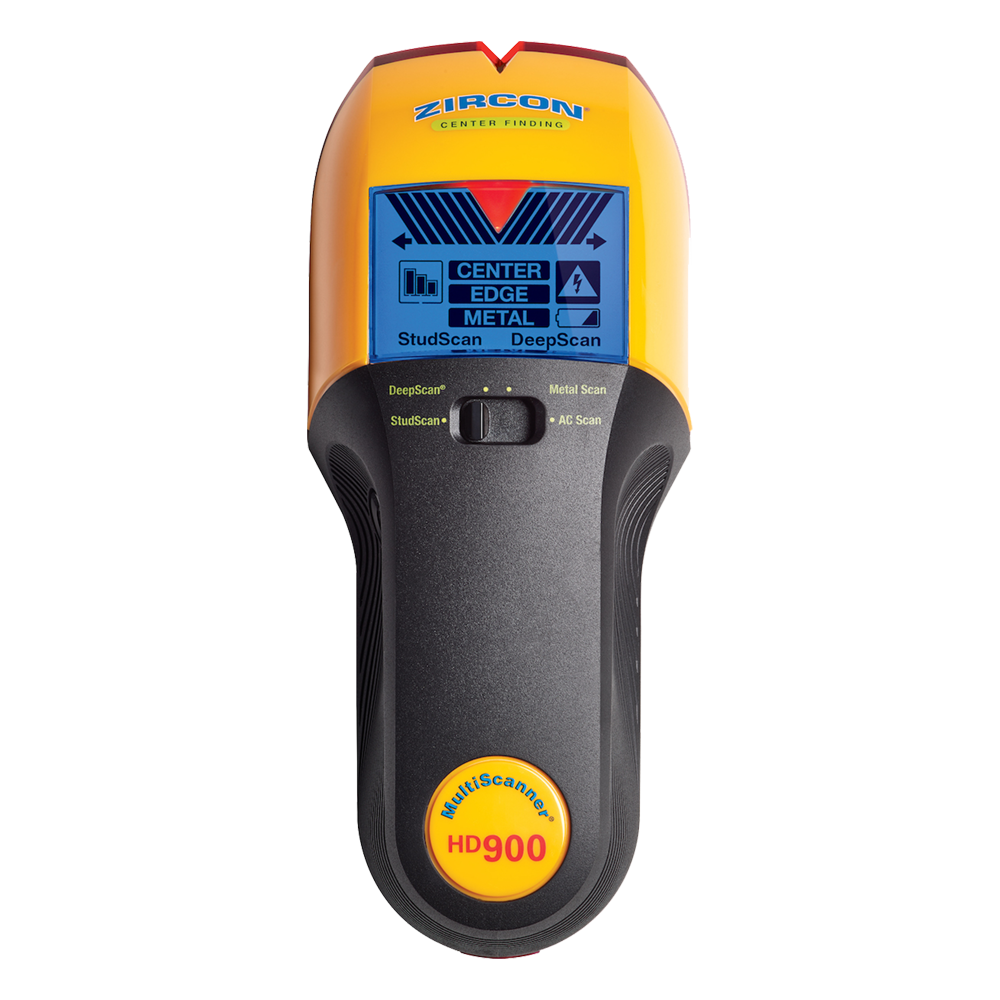

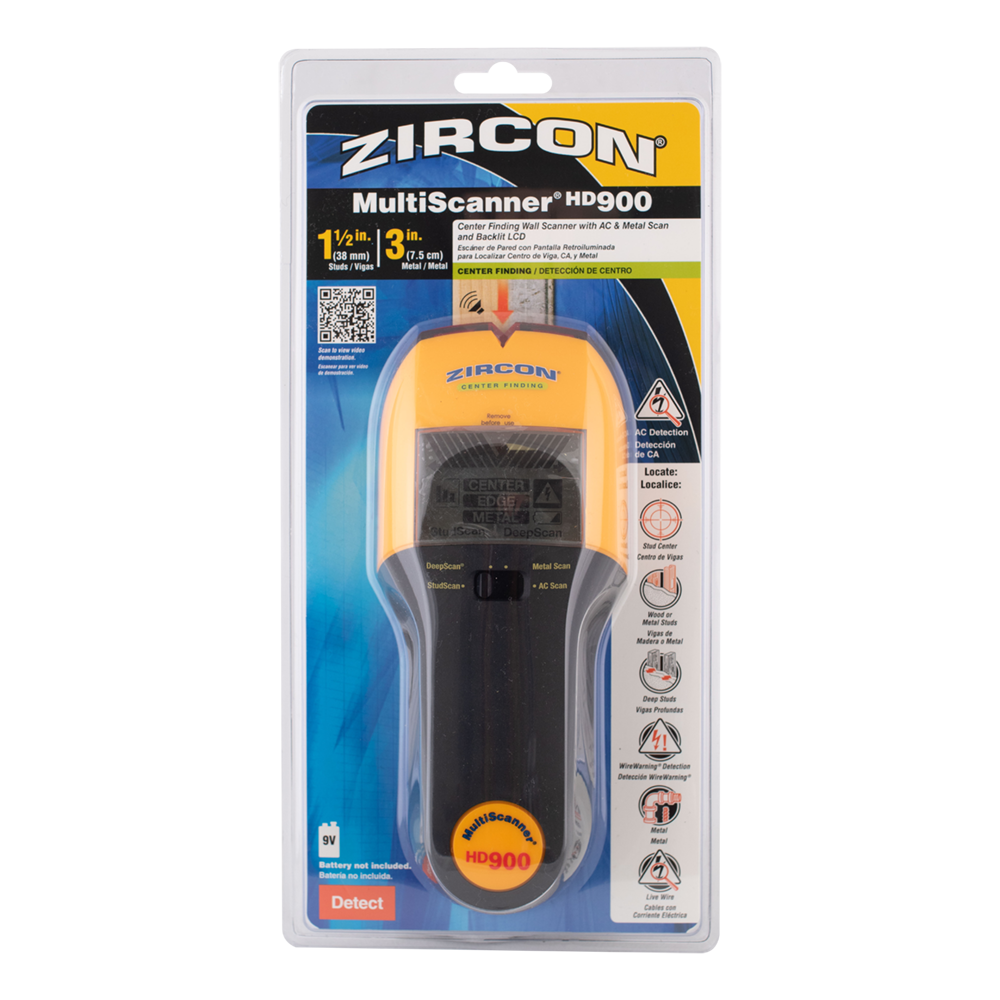

ZN-HD900 | Zircon #HD-900 STUD SENSOR/ EDGE FINDER
Multifunction Wall Scanner with AC and Metal Scan and Backlit Display
MultiScanner HD900 quickly and easily locates studs and joists behind walls, floors, and ceilings. It also locates metal as well as live AC electrical wiring. A 4-mode switch makes it easy to change functions, while the ultra-bright display screen, SpotLite Pointer, and audio tone all indicate the location of the target.
Features:
StudScan mode locates the center, edges, and direction of wood or metal studs up to 3/4 in. (19 mm) deep
DeepScan mode doubles the scanning depth to 11/2 in. (38 mm)
WireWarning detection indicates the presence of live, unshielded AC electrical wiring up to 2 in. (51 mm) deep
in stud and metal scanning modes
Metal Scan mode locates non-ferrous metal, such as copper pipe, up to 11/2 in. (38 mm) deep, and ferrous metal, such as rebar, up to 3 in. (76 mm) deep
AC Scan mode locates live, unshielded AC electrical wiring up to 2 in. (51 mm) deep
ACT (Auto Correcting Technology) automatically corrects common errors, such as when scanning begins over a stud
Backlit LCD display with Target Spotlight indicates the direction and edge of the stud and illuminates when the center of the stud is detected
Low battery indicator for optimum performance
Signal Strength indicator helps to distinguish between shallow and deep targets
SpotLite Pointer shines an arrow-shaped light on the wall to clearly indicate the center of the stud
Translucent base and illuminated V marker groove for more accurate marking of target location
Specifications:
Dimensions: 196mm x 82mm x 40mm
Weight: 227g (without battery)
Battery Type: 9V alkaline, required
Depth: StudScan mode is up to 19mm and DeepScan/Metal Scan mode is up to 38mm (76mm for rebar)
Position Accuracy: Up to a depth of 19mm is within 3mm and up to a depth of 38mm is within 5mm
WireWarning Position Accuracy: Typically 90-250 V at 50-60 Hz within 6 in. (152 mm) of a hot unshielded wire in drywall
WireWarning Depth: In typical wall with Romex wiring, wire can be detected up to 2 in. (51 mm) deep
Operating Temperature: -7 to 41C
Storage Temperature: -29 to 66C
Humidity: 5 - 90% RH (non-condensing)
Water Resistance: Splash and water resistant, not waterproof
