Description

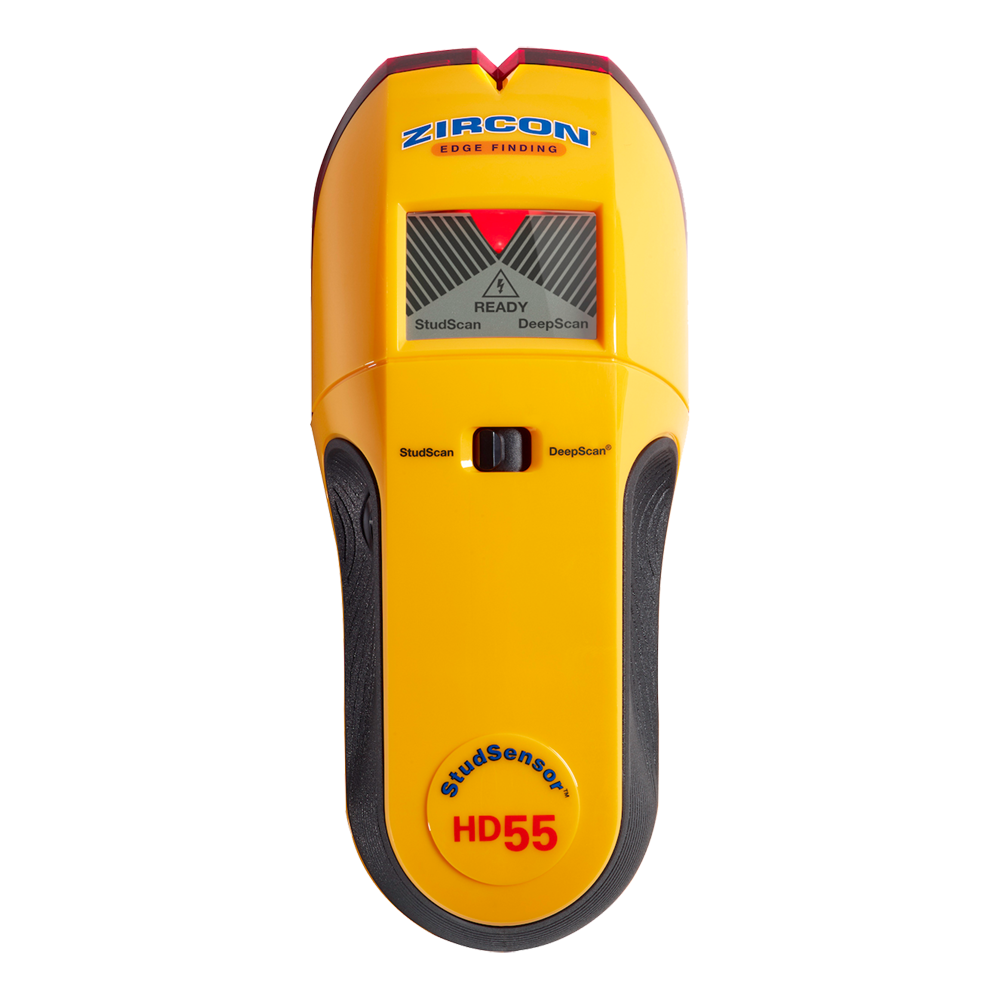

ZN-HD55 | Zircon #HD-55 STUD SENSOR/ EDGE FINDER
Deep-Scanning Stud Finder with SpotLite Pointer and WireWarning Detection
The StudSensor HD55 deep-scanning stud finder boasts more design innovations by Zircon. Featuring an enhanced LCD display, it debuts a new Target Spotlight that illuminates on-screen when you’ve found the edge of a stud. Select from two stud scan modes to find the edges of wood and metal studs to securely anchor mirrors, shelves, and cabinets to the wall while also avoiding live AC electrical wiring.
Features:
StudScan mode locates the edges of wood or metal studs up to 3/4 in. (19 mm) deep
DeepScan mode doubles the scanning depth to 11/2 in. (38 mm) deep
WireWarning detection indicates the presence of live, unshielded AC electrical wiring up to 2 in. (51 mm) deep
Zircon’s patented over-the-stud indication alerts the user to start the scan in a new location if scanning begins over a stud
Enhanced LCD display with Target Spotlight indicates approaching stud edge and illuminates when stud edge is detected
SpotLite Pointer shines an arrow-shaped light on the wall to clearly indicate the edge of the stud
Translucent base and illuminated V marker groove for more accurate marking of stud edge location
Rubber handle for non-slip grip
Specifications:
Dimensions: 172mm x 72mm x 37mm
Weight: 131g (without battery)
Battery Type: 9V alkaline, required
Depth: StudScan mode is up to 19mm and DeepScan mode is up to 38mm
Position Accuracy: Up to a depth of 19mm is within 3mm and up to a depth of 38mm is within 5mm using the dual scan and mark procedure
WireWarning Position Accuracy: Typically 90-250 V at 50-60 Hz within 6 in. (152 mm) of a hot unshielded wire in drywall
WireWarning Depth: In typical wall with Romex wiring, wire can be detected up to 2 in. (51 mm) deep
Operating Temperature: -7 to 41C
Storage Temperature: -29 to 66C
Humidity: 5 - 90% RH (non-condensing)
Water Resistance: Splash and water resistant, not waterproof
