Description

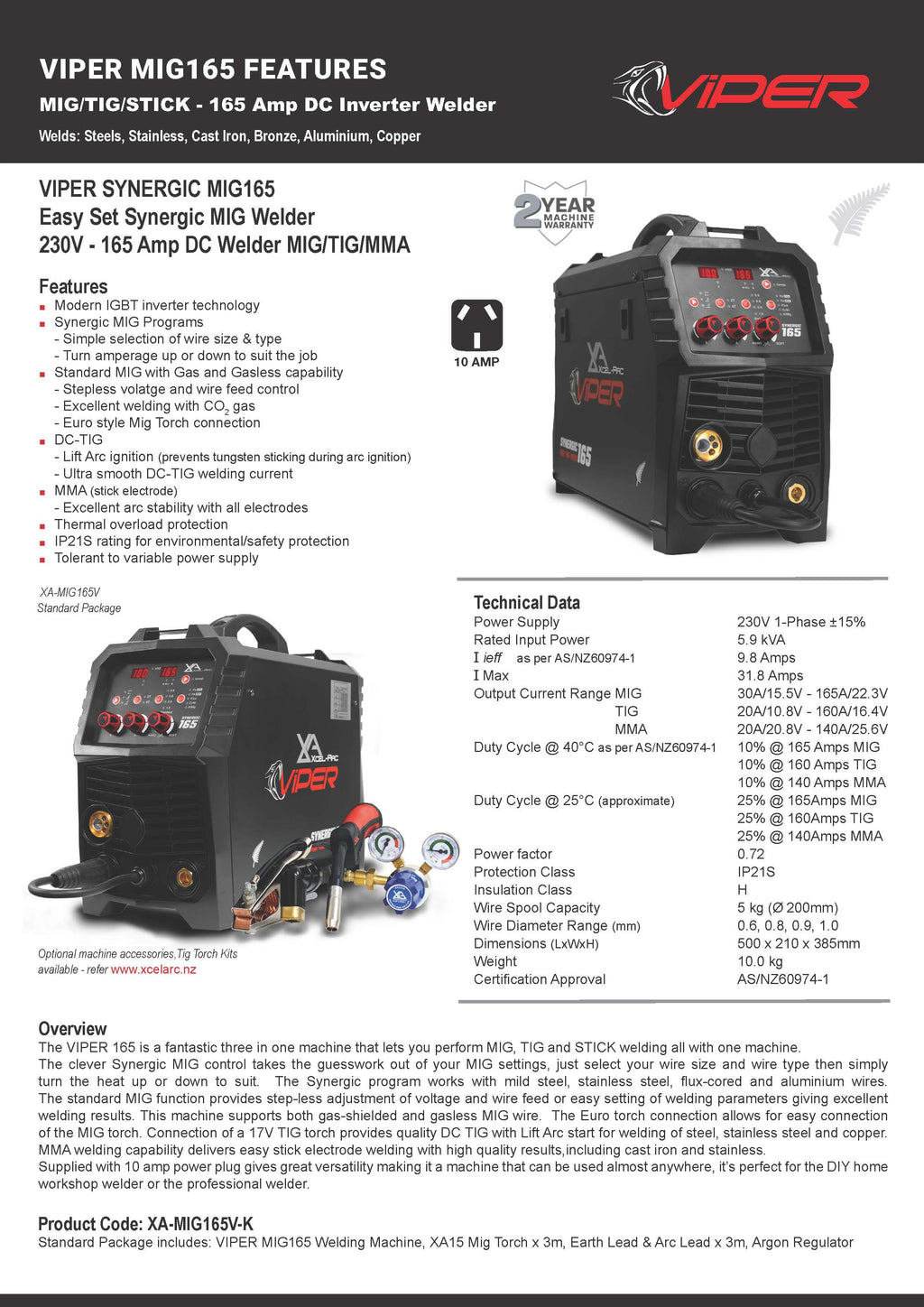

The VIPER 165 is the ultimate multi-process welder for the DIY enthusiast. MIG, TIG or STICK, the VIPER does it all, and its ready to go anywhere you have a standard 10-amp outlet. Get repairs done and see your projects come together in record time with the ability to change modes with the flick of a switch.
The VIPER 165 is the perfect solution for those looking for insane performance without needing to blow your budget on multiple welders.
Standard Package includes: VIPER MIG165 Welding Machine, XA15 Mig Torch x 3m, Earth Lead & Arc Lead x 3m, Argon Regulator
Optional Tig Torch is available on code XATK3
PRIMARY INPUT VOLTAGE 230V Single Phase
SUPPLY PLUG 10 AMP
RATED INPUT POWER (kVA) 5.9
Ieff (A) 9.8
PROTECTION CLASS IP21S
INSULATION CLASS H
POWER FACTOR 0.72
DINSE CONNECTOR 35/50
STANDARD AS/NZ60974-1
SUITABLE MATERIAL
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
WARRANTY (Years) 2
MIG WELDING CURRENT RANGE 30-165A
MIG DUTY CYCLE at 40C 10% at 165A
MIG WIRE SIZE RANGE 0.6-0.9mm
MIG WIRE SPOOL SIZE 5kg
MIG WELDING THICKNESS RANGE 1-8mm
DRIVE ROLLER SIZE 30/22
TIG FUNCTION TYPE DC Lift Arc
TIG WELDING CURRENT RANGE 20-160A
TIG DUTY CYCLE at 40C 10% at 160A
TIG WELDING THICKNESS RANGE 1-6mm
STICK WELDING CURRENT RANGE 20-140A
STICK DUTY CYCLE at 40°C 10% at 140A
STICK ELECTRODE RANGE 2.5-4.0mm
STICK WELDING THICKNESS RANGE 2-8mm
