Description

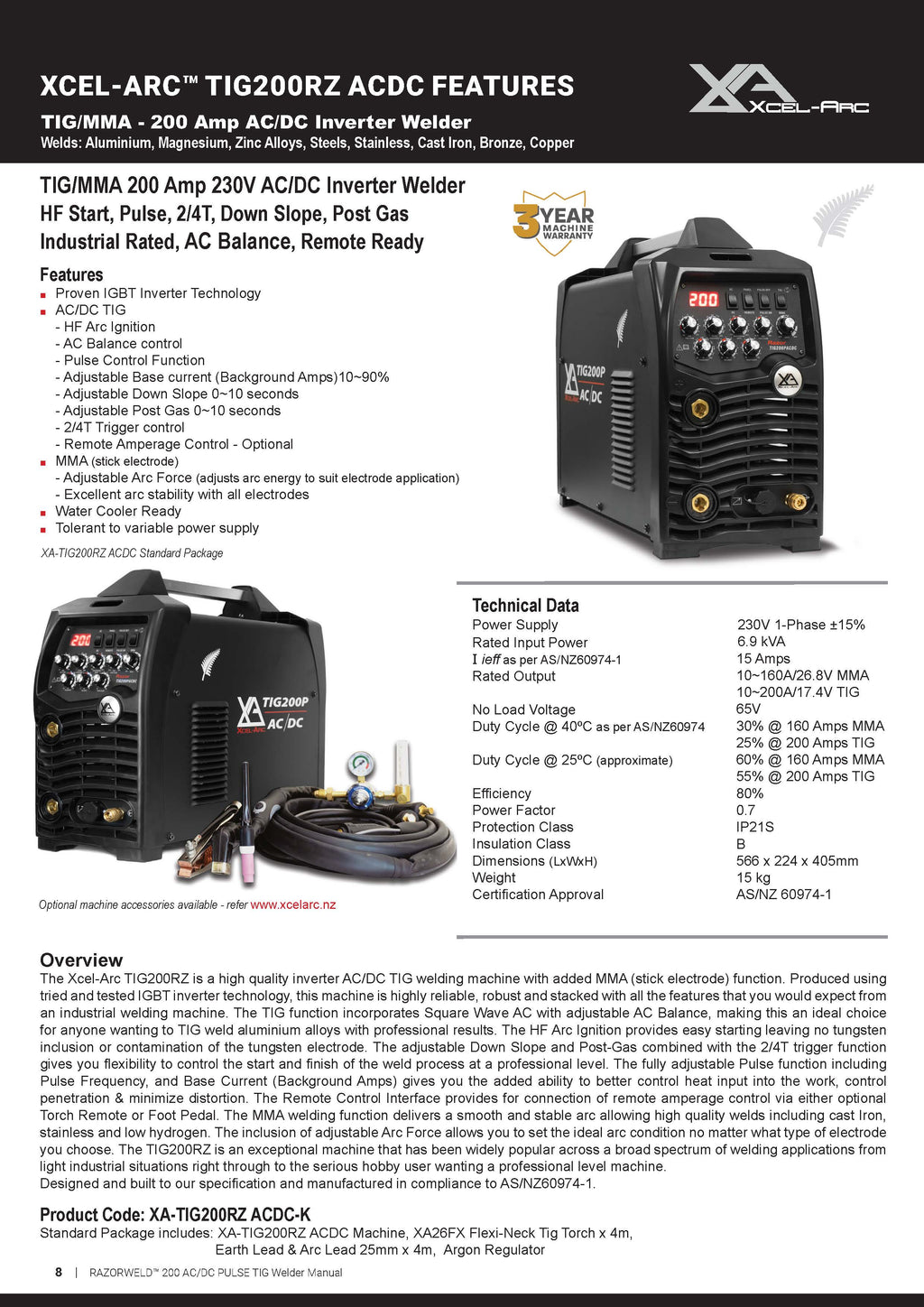

XA-TIG200RZACDC-K | XCEL-ARC TIG200RZ AC/DC TIG WELDER
This is a high-quality inverter AC/DC TIG welding machine with added MMA (stick electrode) function. Produced using tried and tested IGBT inverter technology, this machine is highly reliable, robust and stacked with all the features that you would expect from an industrial welding machine. The TIG function incorporates Square Wave AC with adjustable AC Balance, making this an ideal choice for anyone wanting to TIG weld aluminium alloys with professional results. The HF Arc Ignition provides easy starting leaving no tungsten inclusion or contamination of the tungsten electrode. The adjustable Down Slope and Post-Gas combined with the 2/4T trigger function give you the flexibility to control the start and finish of the welding process at a professional level.
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
230V Single Phase
SUPPLY PLUG
15 Amps
RATED INPUT POWER (kVA)
6.9
Ieff (A)
15
RATED OUTPUT
10~160A/26.8V | 10~200A/17.4A
NO LOAD VOLTAGE (V)
65
PROTECTION CLASS
IP21S
INSULATION CLASS
B
POWER FACTOR
0.7
STANDARD
AS/NZ60974-1
SUITABLE MATERIAL
Aluminium, Magnesium, Steel, Stainless Steel, Cast Iron, Bronze, Copper, Zinc Alloys
WARRANTY 3 Years
TIG SPECIFICATIONS
TIG WELDING CURRENT RANGE
10~200A
TIG DUTY CYCLE at 40C
25% at 200A
STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE
10~160A
STICK DUTY CYCLE at 40C
30% at 160A
SIZE & WEIGHT
566x224x405 mm
15kg
Package Contents:
Xcel-Arc 200 TIGRZ AC/DC Welder Machine
4m XA26FX Flexi-Neck TIG Torch
4m Earth Lead & Arc Lead 25mm
Argon Regulator
Operating Manual
