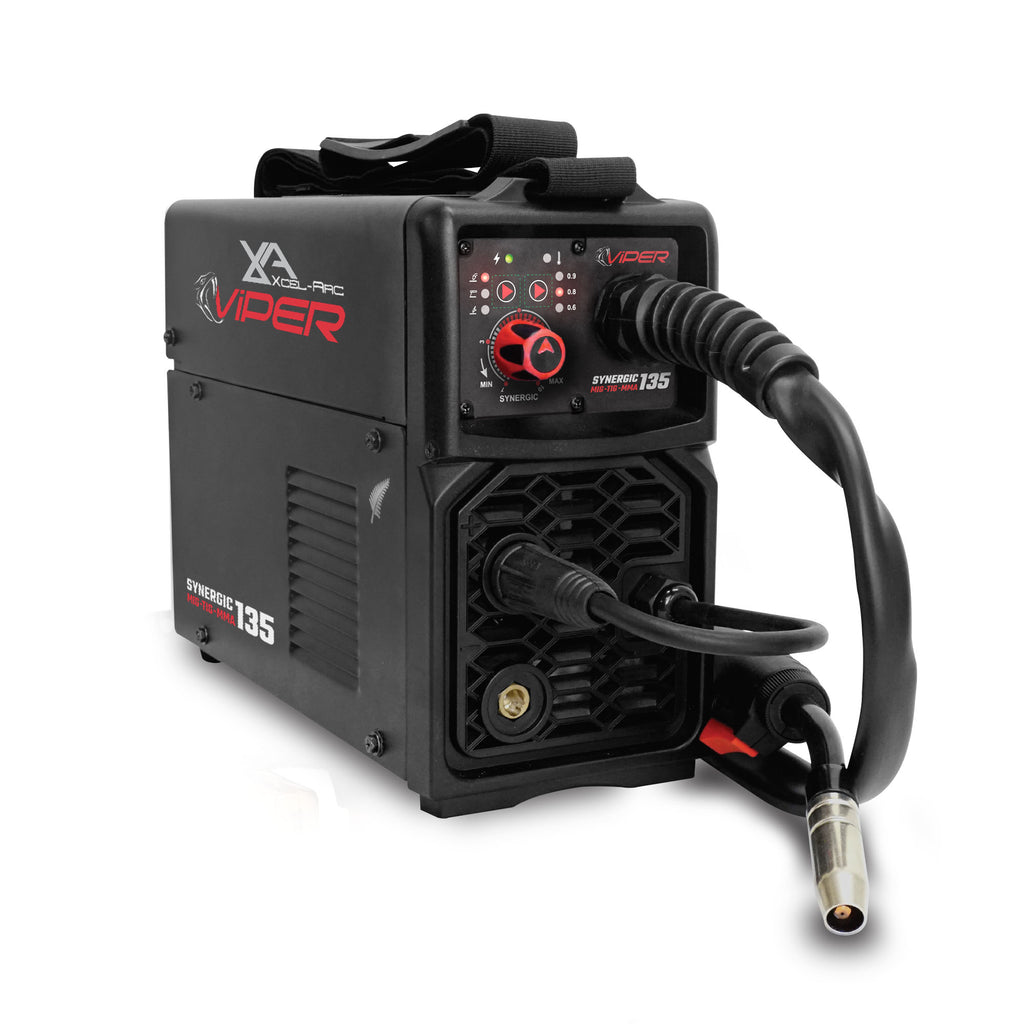

XA-MIG135V-K NEW!! Viper MIG135 Synergic MIG/MMA/TIG Inverter Welder Gasless & Gas MIG capability. DC Tig and Stick Electrode function.
The VIPER135 SYNERGIC features MIG programs for 0.6mm, 0.8mm and 0.9mm wire. It can take Flux-Cored, Mild Steel and Stainless Steel MIG wires. The built-in 10 AMP Plug makes this the perfect welder for your home workshop or out on the field. MIG, TIG or STICK, the VIPER 135 SYNERGIC does it all and you will be able to take it anywhere you need. Weighing just 5.2kg.Running off a 10 AMP plug, this machine is perfect for small repairs and DIY welding projects. The Mig135 is a Mig Machine for its primary function which means you cannot use a foot control on it
Comes with fixed MIG torch, earth lead, Drive roll set and 1kg Spool of gasless wire - Gas Hose is 2m, Mig torch is 2.5m , Earth lead is 4m
XATK1 IS THE TIG TORCH KIT TO GO WITH THIS SET

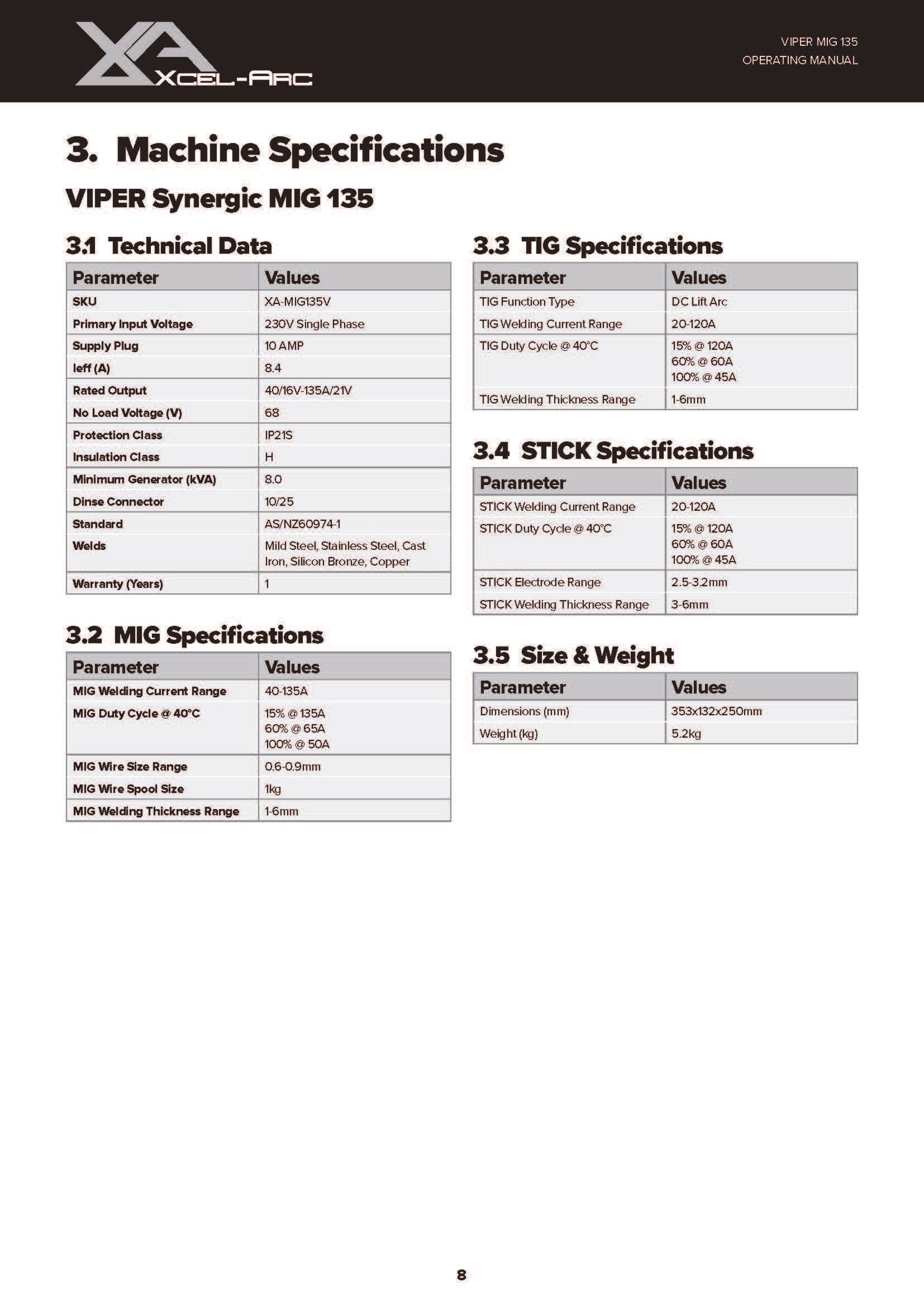

MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
230V Single Phase
SUPPLY PLUG 10 AMP
Ieff (A) 8.4
RATED OUTPUT 40/16V-135A/21V
NO LOAD VOLTAGE (V) 68
PROTECTION CLASS IP21S
INSULATION CLASS H
POWER FACTOR 0.68
MINIMUM GENERATOR (kVA) 8.0
DINSE CONNECTOR 10/25
STANDARD AS/NZ60974-1
WARRANTY (Year) 1
MIG WELDING CURRENT RANGE 40-135A
MIG DUTY CYCLE at 40C 15% at 135A
MIG WIRE SIZE RANGE 0.6-0.9mm
MIG WIRE SPOOL SIZE 1kg
MIG WELDING THICKNESS RANGE 1-6mm
TIG FUNCTION TYPE
DC Lift Arc
TIG WELDING CURRENT RANGE 20-120A
TIG DUTY CYCLE at 40C 15% at 120A
TIG WELDING THICKNESS RANGE 1-6mm
STICK WELDING CURRENT RANGE 20-120A
STICK DUTY CYCLE at 40C 15% at 120A
STICK ELECTRODE RANGE 2.5-3.2mm
STICK WELDING THICKNESS RANGE 3-6mm
