Description

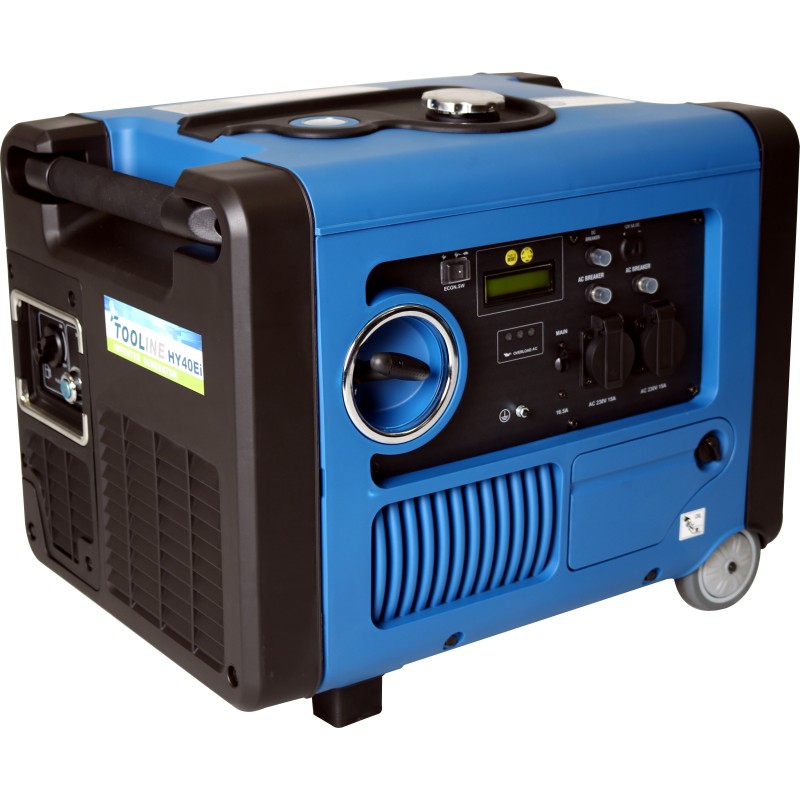

WH222Tooline HY40Ei Petrol Inverter Generator
Model HY40Ei
Rated frequency - (Hz) 50
Rated voltage - (V) 230
Rated ou tput - (kW) 3.6
Max. output - (kW) 4.0
Rated current - (A) 16.5
Rated rotational speed - (rpm) 3600
Phase No. - Single
Power factor - (COS) 1.0
Insulation class - F
DC output - 12V / 5A
ENGINE
Engine model - ZS170 F-2
Engine type - 1 cylinder, 4 stroke, air cooled, OHV
Bore x stroke - (mm) 70x58
Displacement - (cc) 223 (6.9HP)
Compression ratio - 8.5:1
Ignition system - TCI
Spark plug - F6RTC/F7RTC
Starting system - Recoil & Electric
Lubricating system - Splashed
Lubricating oil SAE - 15W-30
Oil capacity - (L) 0.6
Fuel type - 91 Unleaded gasoline
Fuel consumption - (g/(kW .h) 500
Max. altitude - (m) 4000
Cooling system - Forced air
Noise level - (dB/7m) 60
Structure type - Fully enclosed
Fuel tank capacity - (L) 9
Continuous run time - (hr/rated load) 7
Overall dimensions - (LxWxH)mm - 592 x 575 x 500
Net weight - (kg) 50
