Description

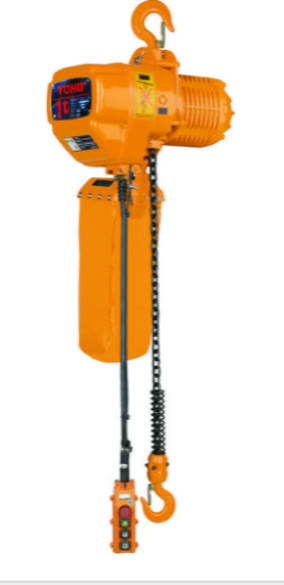

Toho Electric Chain Hoist 3m 3 Ton 3 Phase 2 Speed
FEATURES
Thermal overload Protection
Light weight compact design combined with high efficiency.
Pressed steel structure
High tensile alloy steel top bottom hooks
Grade 80 - 7.1mm Alloy Steel load chain.
Limit switches top and bottom to prevent chain runout.
Complies with ASNZS1418.2 standard
SPECIFICATIONS
Capacity 3 Ton
3 phase 415V 3000W
Lifting height 3m
2 Speed 5.4 and 1.8 m/min
No of chain 1
Chain link dia. 11.2mm
Running test load: 35.7kN
IP rating hoist IP54
IP rating control IP65
Extra Weight per metre of extra lift: 2.8 kg
Weight 122Kg
CODE TECH3PH-0303
