Description

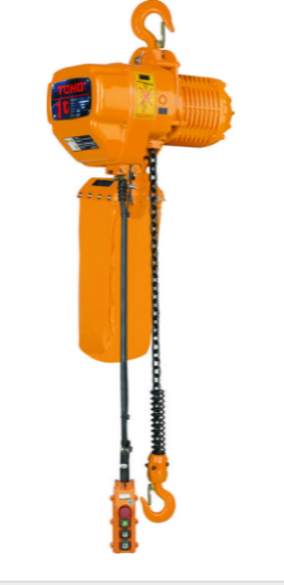

Toho Electric Chain Hoist 6m 2 Ton 3 Phase 2 Speed TECH3PH-0206
FEATURES
Thermal overload Protection
Light weight compact design combined with high efficiency.
Pressed steel structure
High tensile alloy steel top bottom hooks
Grade 80 - 7.1mm Alloy Steel load chain.
Limit switches top and bottom to prevent chain runout.
Complies with ASNZS1418.2 standard
SPECIFICATIONS
Capacity 2 Ton
3 phase 415V 1200W
Lifting height 6m
2 Speed 1.2 and 3.5 m/min
No of chain 1
Chain link dia. 7.1mm
Running test load: 12.5 kN
Extra Weight per metre of extra lift: 2.2 kg
Weight 80Kg
CODE TECH3PH-0206
