Description

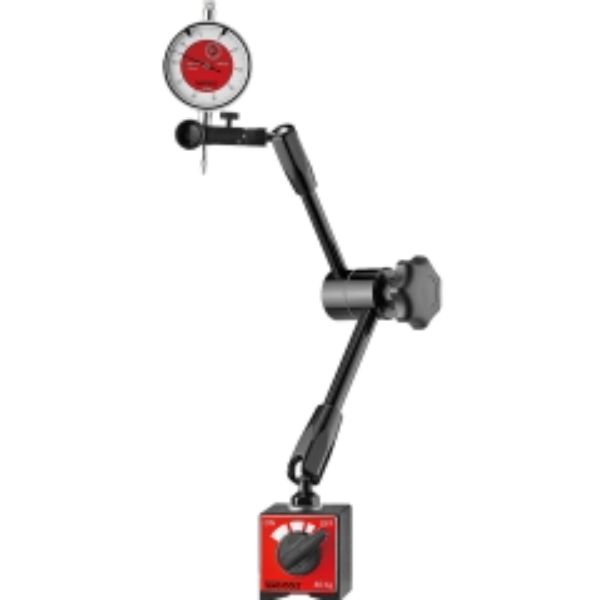

DGMM - Teng Dial Indicator With Stand
A dial indicator complete with a magnetic stand with central locking
58mm diameter with turnable scale and two tolerance indexes
Extra pointer that indicates whole millimetres
Aluminium construction dial indicator with replaceable measuring tip
A strong magnet in the base can be turned on or off at the turn of a knob
One central locking knob tightens or releases the lower, upper and middle joints with fine adjustment in the upper holder
Measuring Range: 0-10mm
Scale Division: 0.01mm
Diameter of Dial: 58mm
Maximum Height: 330mm
Base Plate Length: 55mm
Base Plate Width: 50mm
Base Plate Height: 58mm
Weight: 1.63kg
