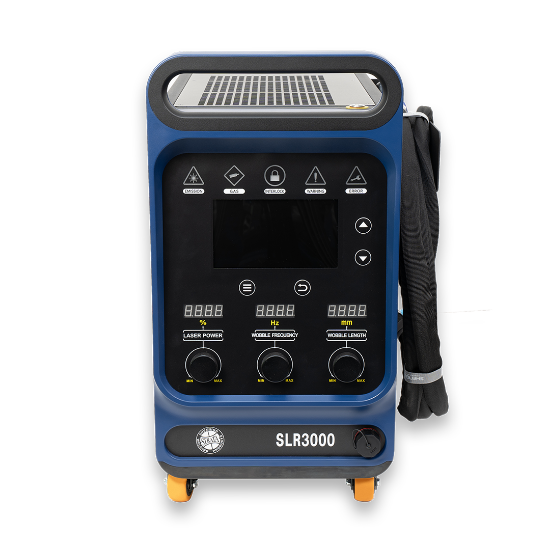

SLR3000 | Pro Series 1500W Handheld Laser Welder
The handheld laser welders feature advanced "small core diameter" laser technology and incorporate a new dual-circuit refrigerant direct cooling system and an integrated structural design. They offer exceptional performance with high effectiveness, deep penetration, superior energy efficiency, and remarkable convenience. These versatile welders can work on various metal materials, including aluminium, stainless steel, carbon steel, galvanized sheets, and brass. They are ideal for various applications, such as welding building materials, sheet metal, pipeline processing, home electrical appliances manufacturing and crafting kitchen and bathroom hardware.
Produce aesthetically pleasing welds with exceptional penetration - capable of welding from 0.2mm up to 9.0mm in most metals
Excellent performance with high speed and efficiency - 6 to 10 times faster than TIG welding on thinner materials!
Usually no need for secondary processing like weld cleaning, deburring, grinding or buffing with workpieces that have been laser welded - saving significant time and cost
Very low heat spreading beyond the weld bead area ensuring very little discoloration of materials and no warping caused by heat
Low gas usage - Argon gas flow requirements for shielding the weld from impurities can be reduced to significantly lower levels than traditional welding methods, saving on gas expenses
Capable of continuous operation 24 hours a day, 7 days a week
Designed to withstand high and low temperatures, fault-free from -20C to 60C
Excellent improvement on welding fume emissions, saving the environment as well as helping to protect the operator from the effects of harmful fumes
Super simple and intuitive setup for varying material thicknesses and welding positions
Great option for joining dissimilar metals in sections
Ultra-compact welding torch - up to 40% lighter, only 595 grams! Ergonomic torch design protects against operator fatigue in long run production scenarios
Eight separate built in safety checks, protecting both the operator and also guaranteeing the integrity of the weld
App adjustment and control available for welding parameters and troubleshooting/setup tips
Typical applications that have proven amazing cost savings, productivity and weld reliability gains are: sheet metal production, stainless steel tank production, aluminium fabrication, sculpture industry, ducting production, signage production, automated parts welding, trailer fabrication, medical equipment production and embossed sheets

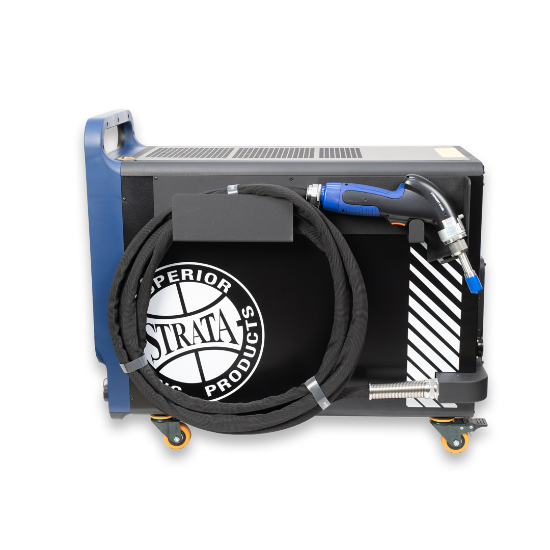

Includes Handheld laser welder power source, operation manual, laser torch cable, workpiece clamp lead, wire feeder unit, protection glass, nozzles, protective spectacles and welding gloves
Weight 43kg
Laser Power(W) 1500
Max Input Power (W) 3800
Voltage 230V/50HZ
Welding Speed(cm/min) 20-160
Dimensions(mm) length*width*height 670x430x310
Welding Wire Diameter (mm) 0.8/1/1.2/1.4/1.6
Torch Wobble Width 0 - 5mm
Working Temperature -20 to 60C
Working Humidity <90%
Output Mode Integrated amoured cable + torch
Working Duration 100% Duty Cycle/ 24 Hr continuous welding
