Description

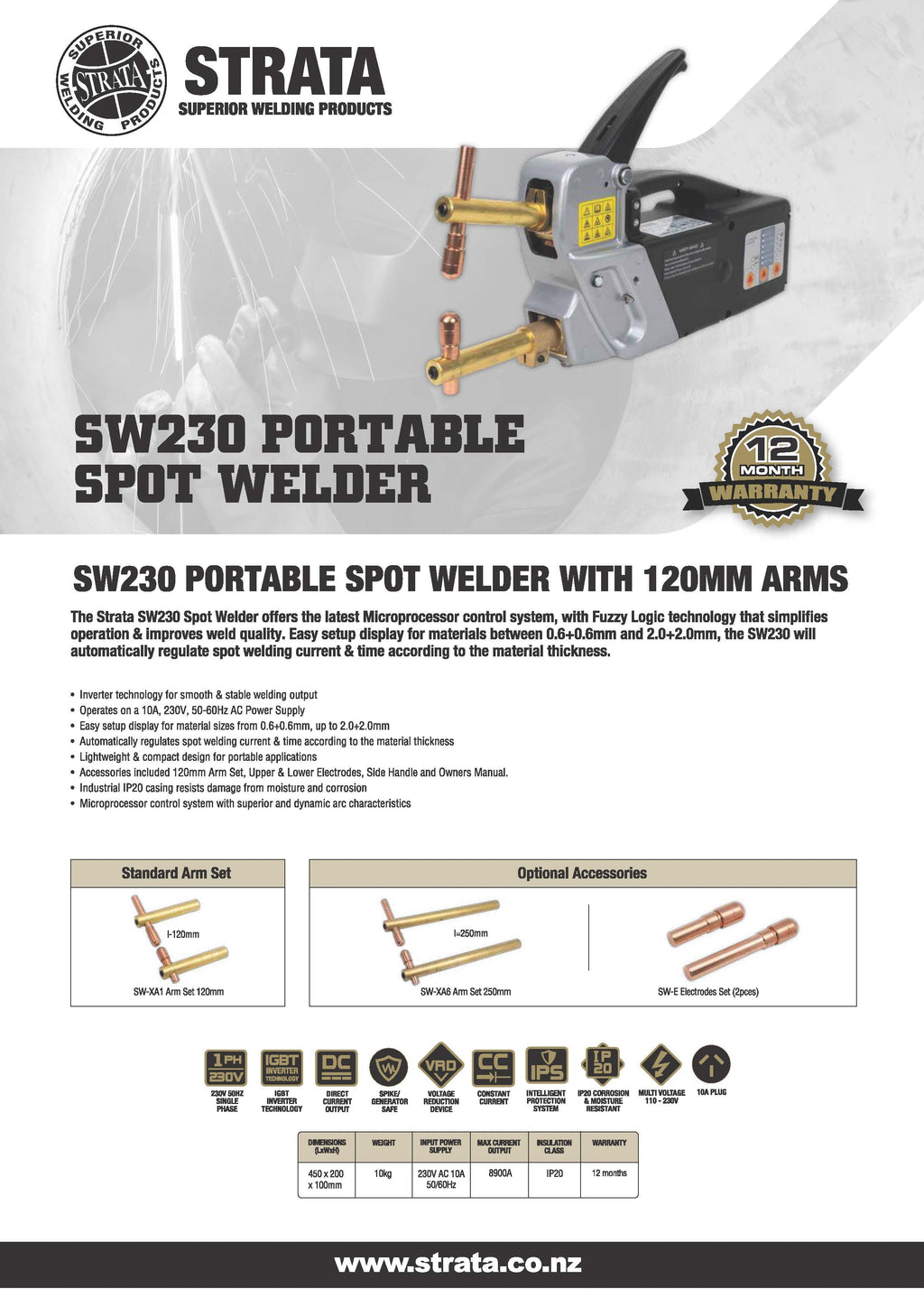

SW230 Strata Portable Spot Welder
The Strata Spot Welder offers the latest Microprocessor control system, with Fuzzy logic technology that simplifies operation and improves weld quality. Easy setup display for materials between 0.6+0.6mm and 2.0+2.0mm, the SW230 will automatically regulate spot welding current & time according to the material thickness.
Inverter technology for smooth and stable welding output
Operates on a 10A, 230V, 50-60Hz AC power supply
Easy setup display for material sizes from 0.6+0.6mm, up to 2.0+2.0mmAutomatically regulates spot welding current & time according to the material thickness
Lightweight & compact design for portable applications
Industrial IP20 casing resists damage from moisture and corrosion
Microprocessor control system with superior and dynamic ARC characteristics
Accessories included 120mm Arm Set, Upper & Lower Electrodes, Side handle and owner's manual
Dimensions 450 x 200 x 100mm (LxWxH)
Insulation Class IP20
Weight 10kg
Current Output 8900A (Max)
Warranty 12 Months
