Description

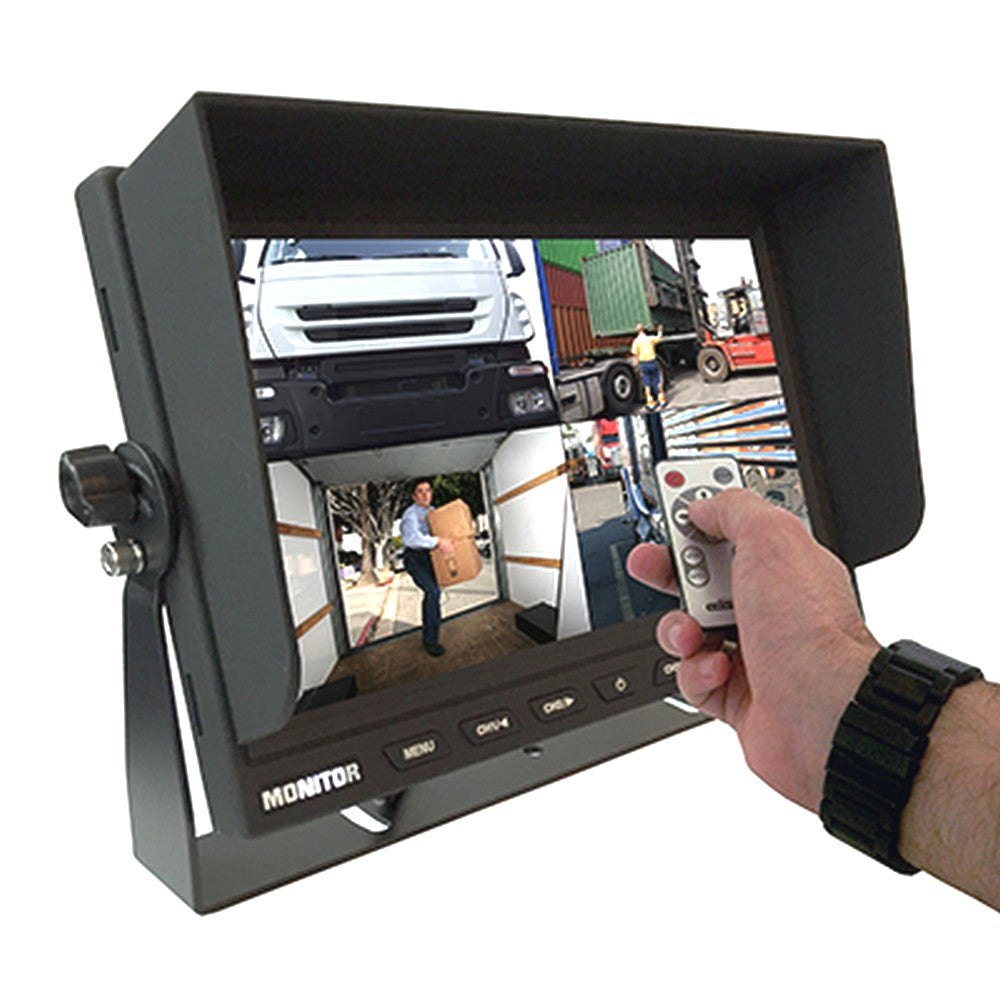

Model: AVSRM90CQUAD This extra large 9 commercial LCD monitor has the advantage of being able to view up to four cameras on the screen at the same time. Extra large 9 high resolution commercial colour multi view LCD monitor Suitable for 12 to 24 volt vehicles (note: if fitting to a 24 volt vehicle the camera must be powered from the LCD monitor the camera CANNOT be connected directly into the vehicles 24 volt power supply) Wide screen 16:9 display Sunshade for the monitor 4x 4-pin inputs for up to four cameras (includes 12 volt power to the cameras) The camera image can be displayed reverse or non reverse allowing the monitor to be mounted at the front or rear of the vehicle Individual switching wire for each camera this means the monitor will automatically switch to display the camera image for the input even if the monitor is not turned on. Adjustable display settings On screen display (OSD) with remote or push button control Switch between camera views with easy push button on screen or by remote Heavy duty 4-pin connectors - female plugs Will accept both PAL and NTSC format cameras Dimensions: Screen with hood: 235 x 157 x 77mm Total dimensions: 265 x 175 x 87mm (bracket height not adjustable) Add your choice of 5 10 15 20 or 25m 4-pin extension cable
