Description

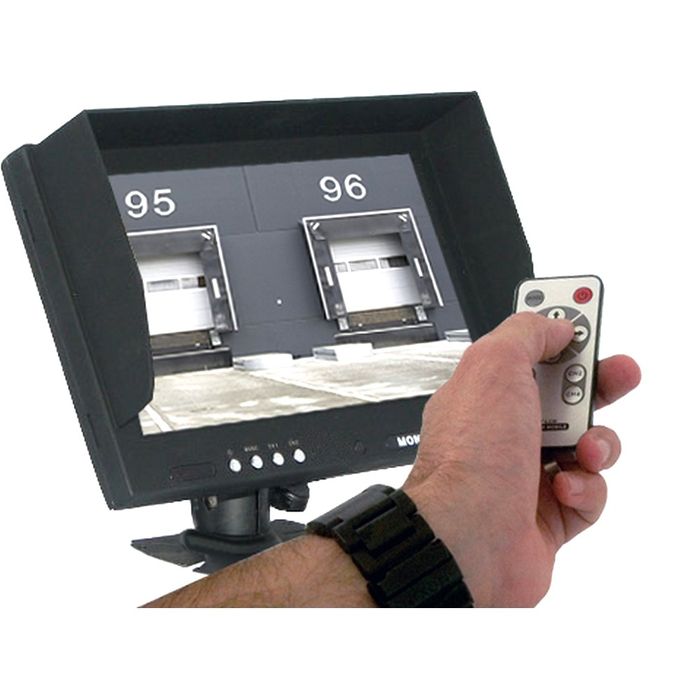

Model: AVSRM70C This heavy duty LCD monitor comes with a bracket fitting for mounting on any suitable flat surface using the supplied adhesive pad. It can have up to two cameras connected to the monitor which comes with heavy duty robust connections and components. 7 high resolution commercial colour LCD monitor Suitable for 12 to 24 volt vehicles (note: if fitting to a 24v vehicle, camera must be powered from the LCD monitor the camera CANNOT be connected directly into the vehicles 24v power supply) Wide screen display switchable16:9 or 4:3 unobtrusive pedestal mount (height/swivel/tilt adjustable) Sunshade for the monitor 2x 4-pin inputs for up to two cameras (includes 12 volt power to the cameras) The monitor can be mounted four ways upright at the front of the vehicle upright at the back roof mounted at the front or roof mounted at the back of the vehicle On screen display (OSD) with remote or push button control Switch between camera views with easy push button on remote or screen Heavy duty 4-pin connectors - female plugs Will accept both PAL and NTSC format cameras Dimensions: Screen with hood: 175 x 115 x 43mm Height with bracket: approx 115 - 155mm (height/swivel/tilt adjustable) Bracket foot: 120 x 90mm
