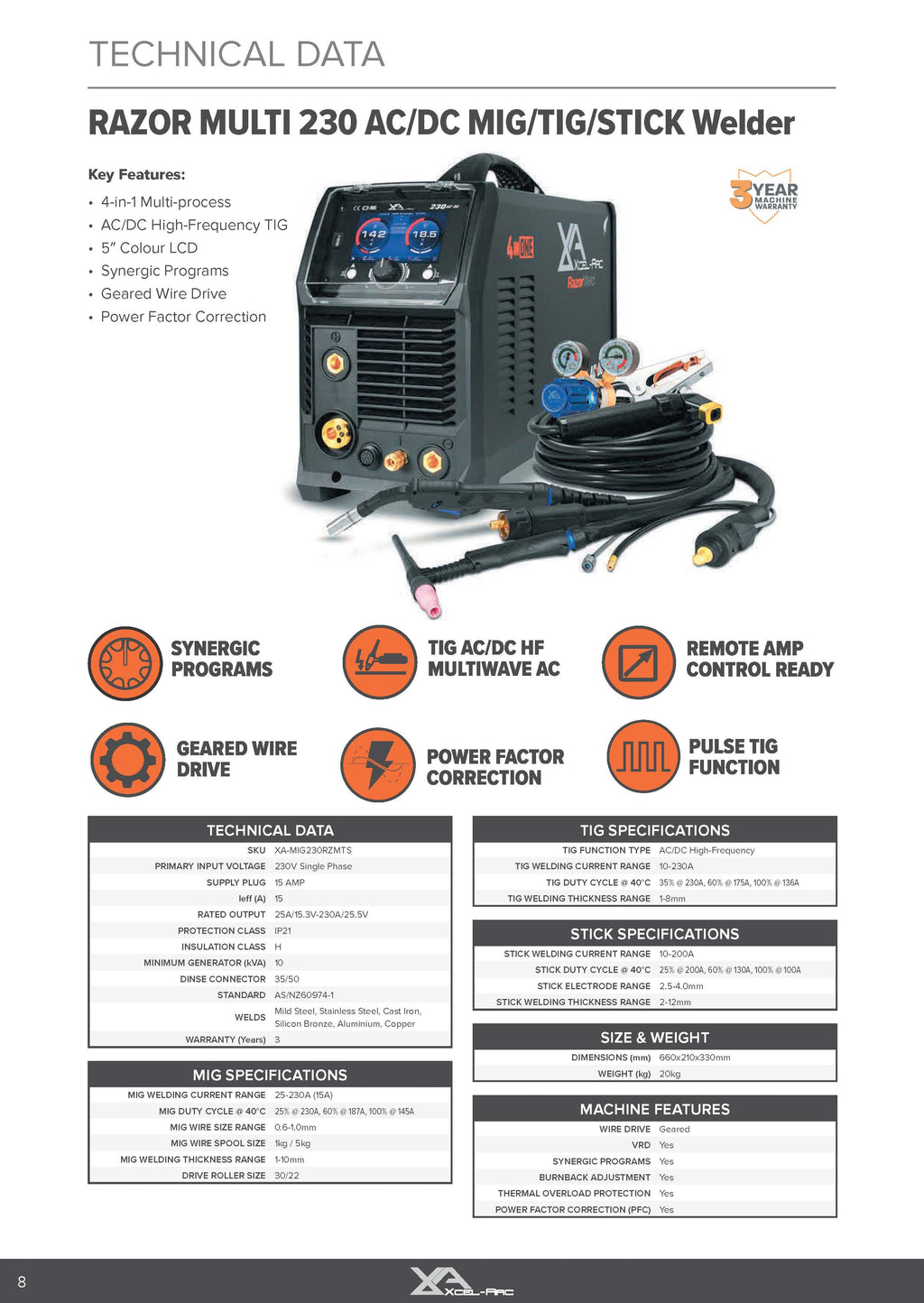

XCEL-ARC RAZOR MIG 230 AC/DC MIG/TIG/STICK 4 IN 1 KIT
Our brand new RAZORWELD MULTI 230 AC/DC 4-in-1 is here. As the latest and greatest addition to our RAZORWELD line, this machine can do any kind of welding you need it to. MIG, High-Frequency AC & DC TIG, as well as STICK, no matter what you ve got planned, the RAZOR MULTI 230 AC/DC can do it.
PRIMARY INPUT VOLTAGE- 240V Single Phase
SUPPLY PLUG - 15 AMP (15A to 10A Conversion Lead Included)
Ieff (A) - 9.4 / 15
RATED OUTPUT - 25A/15.3V-200A/24V (10A) 25A/15.3V-230A/25.5V (15A)
PROTECTION CLASS - IP21
INSULATION CLASS - H
MINIMUM GENERATOR (kVA) - 8.5 (10A) / 10 (15A)
DINSE CONNECTOR - 35/50
STANDARD - AS/NZ60974-1
SUITABLE MATERIAL - Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
WARRANTY (Years) - 3
MIG SPECIFICATIONS
MIG WELDING CURRENT RANGE - 25-200A (10A) / 25-230A (15A)
MIG DUTY CYCLE @ 40Â °C - 10% @ 200A, 60% @ 81A, 100% @ 63A (10A) / 25% @ 230A, 60% @ 187A, 100% @ 145A (15A)
MIG WIRE SIZE RANGE - 0.6-1.0mm
MIG WIRE SPOOL SIZE - 100mm / 200mm
MIG WELDING THICKNESS RANGE - 1-10mm
DRIVE ROLLER SIZE - 30/22
TIG SPECIFICATIONS
TIG FUNCTION TYPE - AC/DC High-Frequency
TIG WELDING CURRENT RANGE - 10-200A
TIG DUTY CYCLE @ 40Â °C - 25% @ 200A, 60% @ 130A, 100% @ 100A (10/15A)
TIG WELDING THICKNESS RANGE - 1-8mm
Package contains:
RAZORWELD MULTI 230 AC/DC MIG/TIG/STICK Welder
4m XA24 MIG Torch
4m T3FX TIG Torch + Spares
4m Twist Lock Electrode Holder
4m 300 Amp Earth Clamp & Lead
Twin Gauge Argon Regulator
2m Quick-connect Gas Hose
15A to 10A Converter
SIZE & WEIGHT
DIMENSIONS (mm) - 660x210x330mm
WEIGHT (kg) - 20kg
XA-MIG230RZMTS-K
