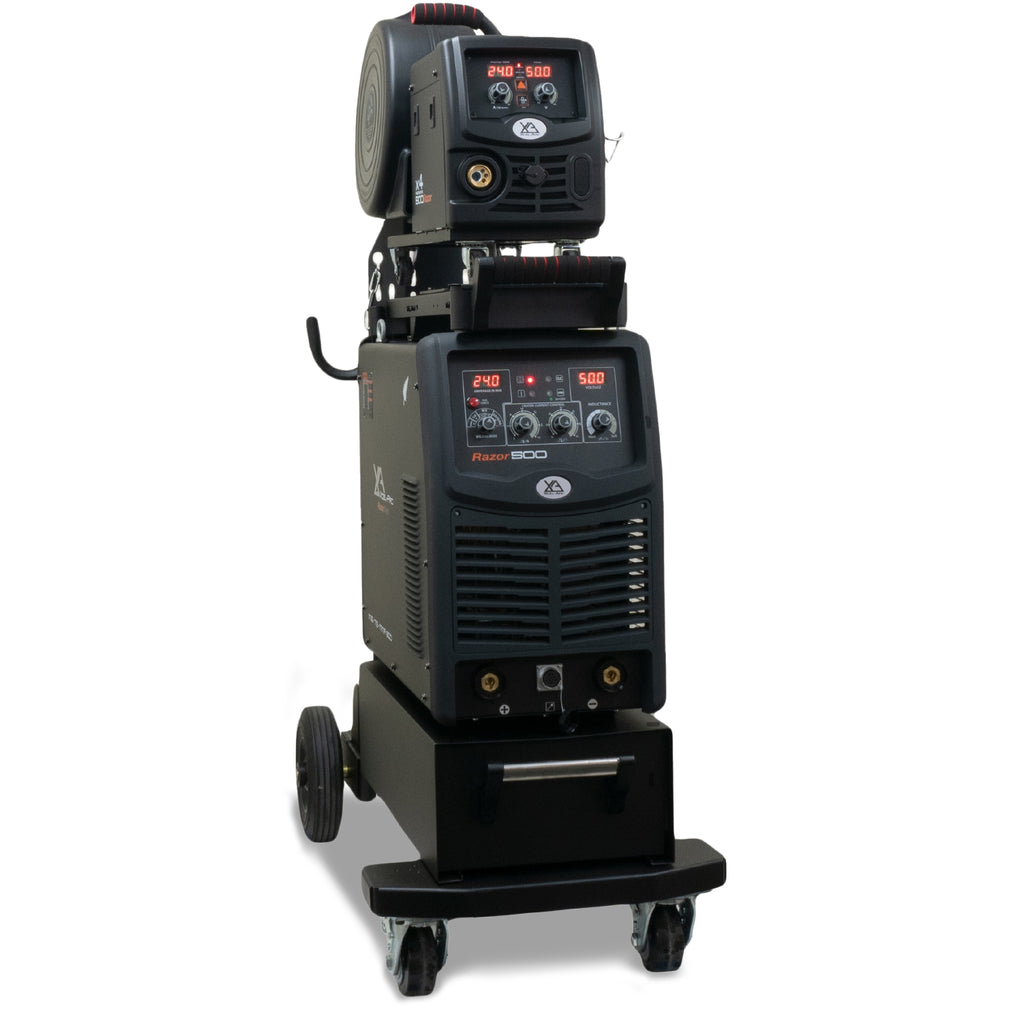

XA-RZMIG500SWF-K | RazorWeld EVO MIG500RZ SWF Inverter Welder Package

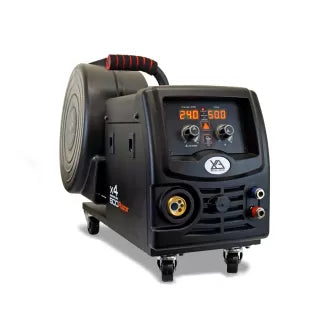

The RAZORWELD 500 SWF is a powerful workshop machine with MIG, TIG and STICK welding functions. This machine features the added flexibility of a Separate Wire Feeder unit, allowing up to 10m of extra manoeuvrability in the workshop. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZORWELD 500 SWF is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.
The RAZORWELD SWF series is designed for superior performance and manoeuvrability, offering the highest quality of welds from Xcel Arc’s range.
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE: 415V Three-Phase
SUPPLY PLUG: Three Phase (32 AMP Recommended)
RATED INPUT POWER (kVA): 25.3
Ieff (A): 24.3
RATED OUTPUT: 50A/17V - 500A/39.0V
NO LOAD VOLTAGE (V): 85
PROTECTION CLASS: IP23
INSULATION CLASS: F
POWER FACTOR: 0.93
MINIMUM GENERATOR (kVA): 26.0
DINSE CONNECTOR: 35/50
STANDARD: AS/NZ60974-1
SUITABLE MATERIAL: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
MIG SPECIFICATIONS
MIG WELDING CURRENT RANGE: 50-500A
MIG DUTY CYCLE at 40C: 60% at 500A
MIG WIRE SIZE RANGE: 0.6-1.6mm
MIG WIRE SPOOL SIZE: 5kg / 15kg
MIG WELDING THICKNESS RANGE: 1-30mm
DRIVE ROLLER SIZE: 30/10 (x2)
TIG SPECIFICATIONS
TIG FUNCTION TYPE: DC Lift Arc
TIG WELDING CURRENT RANGE: 20-500A
TIG DUTY CYCLE at 40C: 60% at 500A
TIG WELDING THICKNESS RANGE: 2-10mm
STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE: 20-500A
STICK DUTY CYCLE at 40C: 60% at 500A
STICK ELECTRODE RANGE: 2.5-6.0mm
STICK WELDING THICKNESS RANGE: 2-20mm
SIZE & WEIGHT
DIMENSIONS (mm): 680x340x560mm
WEIGHT (kg): 43kg
SWF DIMENSIONS (mm): 630x260x470mm
SWF WEIGHT (kg): 14kg
SWF INTERLOCKING CABLE LENGTH (m): 10m
MACHINE FEATURES
WIRE DRIVE: Separate 4 Geared
VRD: Yes
SPOOL GUN CONNECTION: Yes
PUSH / PULL GUN CONNECTION: Yes
BURNBACK ADJUSTMENT: Synergic
WIRE INCH: Yes
INDUCTANCE CONTROL: Yes
CRATER CURRENT CONTROL: Yes
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
AIR ARC GOUGING: Yes
