Description

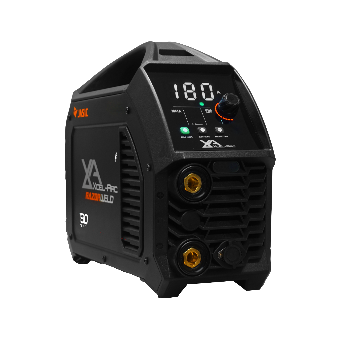

XA-RZARC180-K | RAZORWELD ARC180 MMA/TIG DC Inverter Welder BRAND NEW MODEL
HD Backlit Interface
This next generation interface panel is bright and easy to read in any environment.
DC Lift Arc TIG
Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip
sticking to the workpiece and breaking the tip from the tungsten electrode.
Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
Advanced MMA Features
The RAZOR ARC 180 features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease
of use.
Lightweight & Portable
Size & Weight DIMENSIONS (mm) 370x255x125mm
WEIGHT (kg) 5.8kg
MACHINE FEATURES VRD Yes
THERMAL OVERLOAD PROTECTION
Over Temperature Warning
Primary Input Voltage 240V Single Phase
Supply Plug 15 AMP
Ieff (A) 14.7
Rated Output 20A/20.8V - 180A/27.2V
No Load Voltage (V) 78
Protection Class IP23S
Insulation Class H
Minimum Generator (kVA) 10
Dinse Connector 35/50
Standard AS/NZ60974-1
MMA Weld Material type Mild Steel, Stainless Steel, Cast Iron
TIG Weld Material type Mild Steel, Stainless Steel, Copper, Silicon Bronze
Warranty (Years) 5
