Description

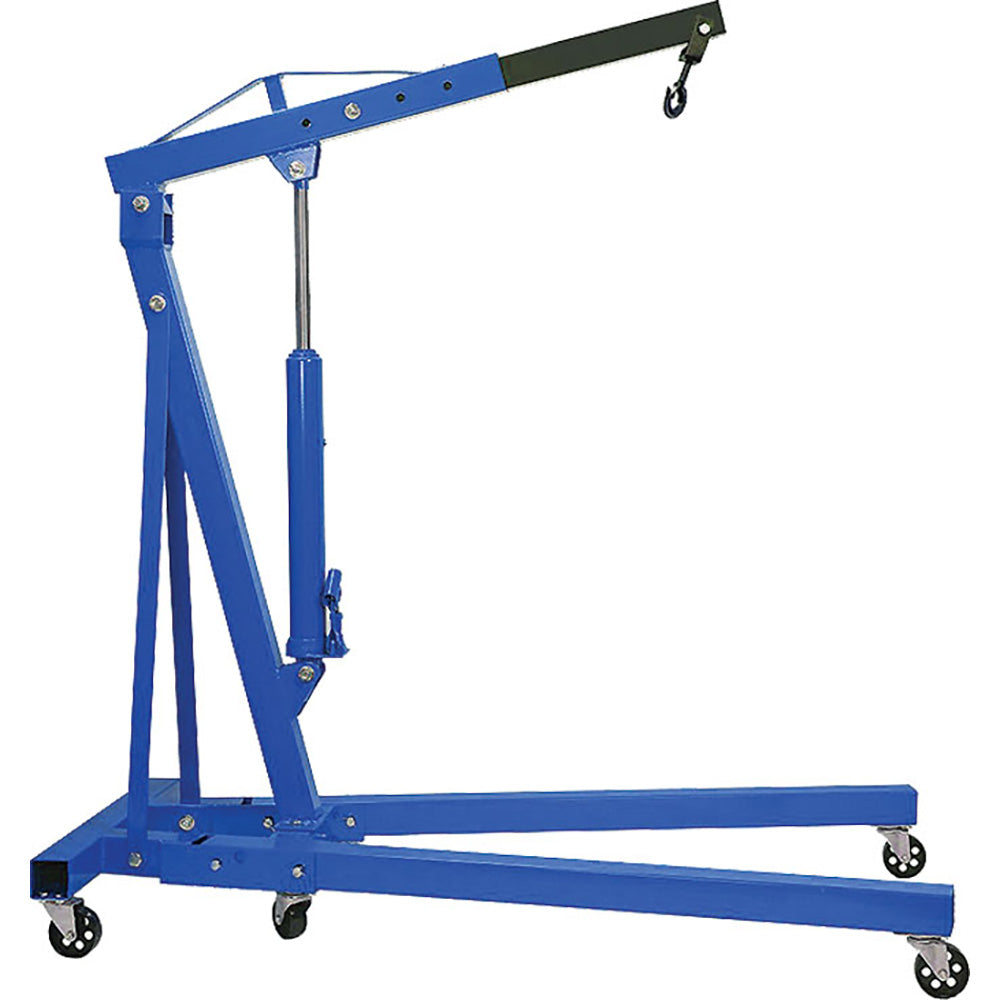

PE1001 | Workshop Engine Crane 2 Ton w/Fold Up Legs
For raising, lowering and transporting of automotive engines and other heavy shop loads. Legs and boom can be folded up quickly and easily to save space when not in use.
2 Ton Safe Working Capacity
Adjustable Reinforced Boom 1/2 Ton, 1 Ton, 1 1/2 Ton and 2 Ton
Boom Length 1/2 Ton (1775mm), 1 Ton (1600mm), 1 1/2 Ton (1410mm) and 2 Ton (1235mm)
Max. Hook Height 1/2 Ton (1790mm), 1 Ton (1700mm), 1 1/2 Ton (1600mm) and 2 Ton (1480mm)
8 Ton Heavy Duty Quick Lift Ram with Overload Protection
Lifting Range 0 to 1790mm (at 1/2 Ton Lift)
Base Floor Print Dimension (Arms Folded) L540mm x W800mm x H1600mm
Base Floor Print Dimension (Arms Extended) L1995mm x W960mm
Net Weight 82kg
Manufactured to Applicable Harmonized Standard(s):
BS EN ISO12100:2010
BS EN 1494:2000+A1:2008 (CE Standard)
