Description

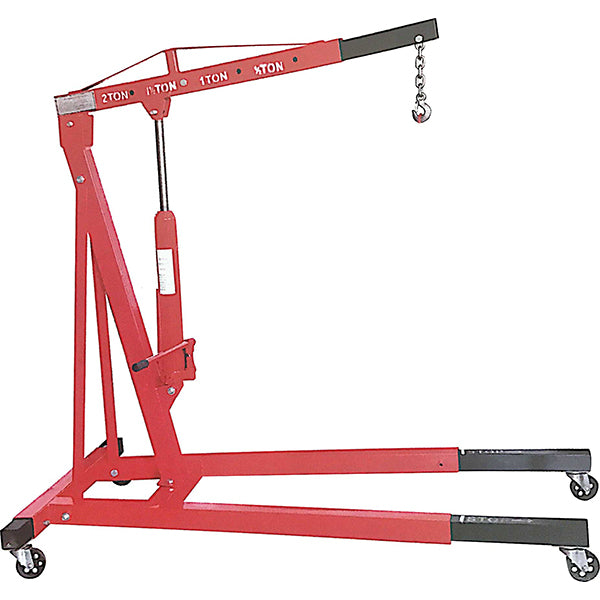

PE1149 2.0T Capacity Workshop Engine Crane
For raising, lowering and transporting of automotive engines and other heavy shop loads. Includes long reach ram, chain and hook with retractable legs.
Features:
Heavy duty welded construction with rugged reinforced tubular steel.
Metered control release valve for lowering boom at a precisely controlled rate of speed.
Special 8 Ton hydraulic long reach ram is equipped with a patented built in by pass mechanism.
Specification:
Maximum Capacity: 2 Ton (1800kg)
Adjustable Reinforced Boom 1/2 Ton, 1 Ton, 1 1/2 Ton & 2 Ton
Boom Length 1/2 Ton (1830mm), 1 Ton (1600mm), 1 1/2 Ton (1380mm) & 2 Ton (1149mm)
Max. Hook Height 1/2 Ton (2180mm), 1 Ton (2045mm), 1 1/2 Ton (1900mm) & 2 Ton (1760mm)
Lifting Range 0 to 2180mm (at 1/2 Ton Lift)
4 cast iron swivel wheel castors
Clevis grab hook with safety latch
Base Length: 1560 240mm
Base Width (Front): 800 990mm
Base Width (Rear): 695 1200mm
