Description

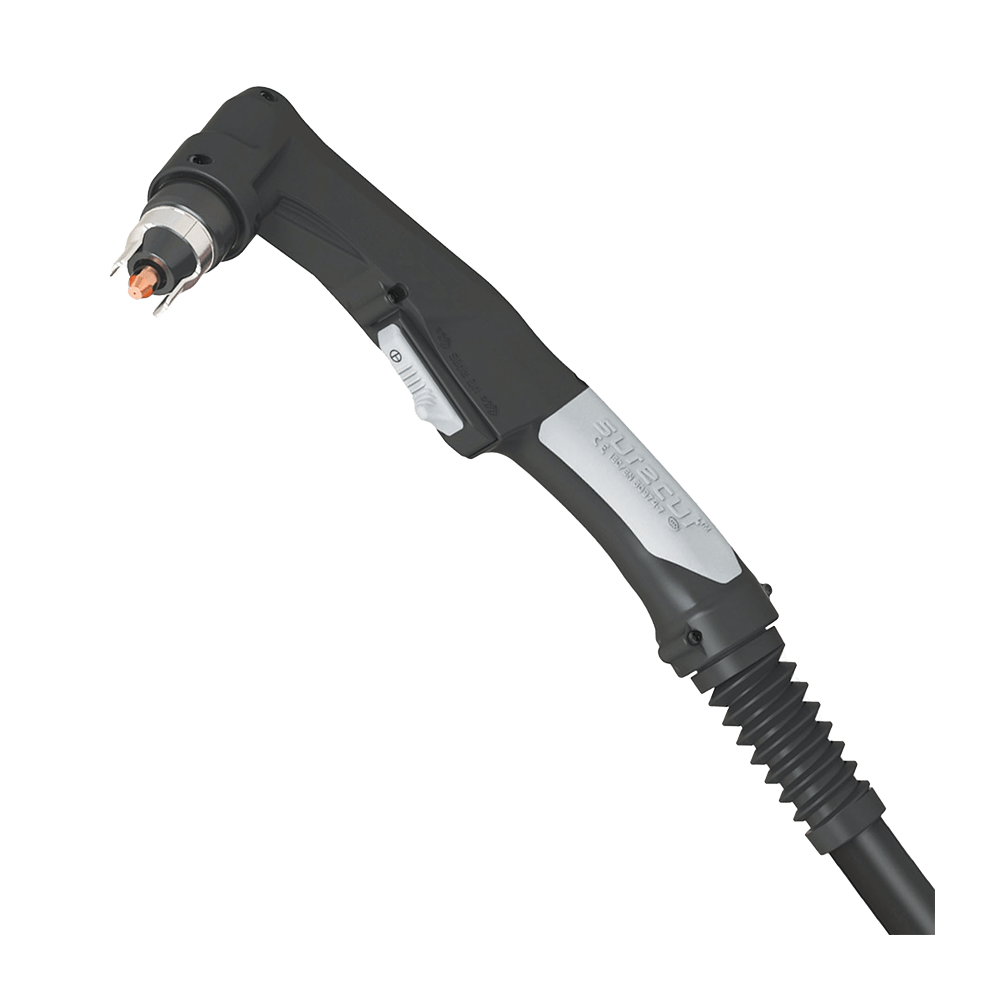

SC80-60-CC1-1.0 | Xcel-Arc SC80 Plasma torch and leads For use on RAZOR CUT45 & CUT80
The SURECUT SC80 Plasma Torch features patented arc striking technology to provide high-quality and reliable cuts every time, without the use of high frequency. This results in superior consumable life cycles.
20-30mm Cutting Thickness
80A Maximum Output
60% @ 80A Duty Cycle
Pilot Arc Start For longer consumable life
Torch Length: 6m
Patented Arc strike technology initiates the pilot arc without the use of high frequency.
A twin ‘fail-safe’ system located beneath the shield cap ensures the torch cannot be activated if the cap is removed.
Produced from precision tolerance machined parts and aerospace polymers.
Large surface area grips improve manoeuvrability and operator comfort, while cable supports are designed to offer the greatest flexibility.
For use on RAZOR CUT45 & CUT80
