Description

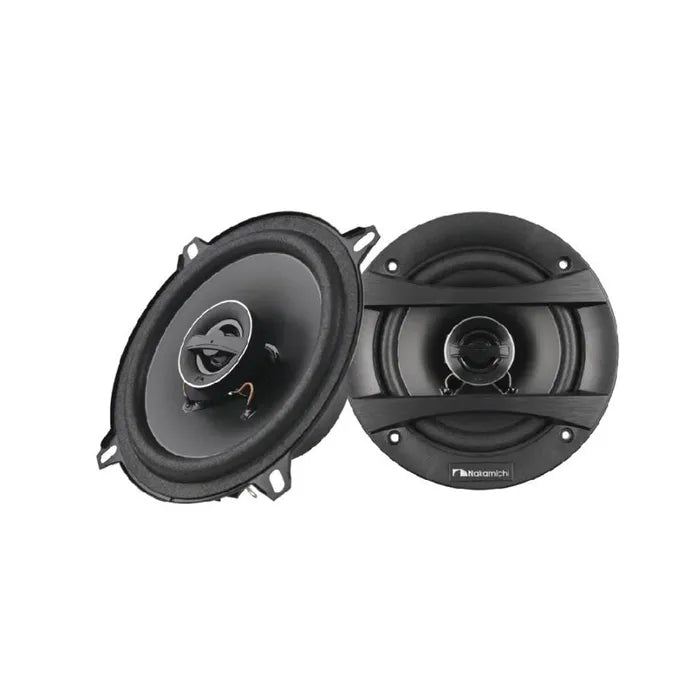

NSF523 | NAKAMICHI 5.25in 2 WAY COAXIAL SPEAKERS PAIR 400W
Nakamichi’s NSF series speakers are designed to provide for a clean and seamless sound performance, with selected materials that work together, enabling you to truly hear and feel the music in your vehicle.
Composite Polypropylene Cone
Our treated composite polypropylene cone is extremely rigid but still lightweight, allowing it to reproduce even deeper and more powerful bass notes.
PEI Dome Tweeter
PEI, or also known as Polyetherimide, is lightweight, heat resistant and retains its shape even after prolonged use, allowing accurate sound reproduction in all situations.
Foam Surround
Our foam surround is treated to maintain a consistent level of sound reproduction during long periods of operation within your vehicle.
SPECIFICATIONS
Type: Coaxial Speakers
Size: 5.25 inch (13.3cm) 2-way
Peak Power: 400W
N-Power(1pr): 60W
Frequency Response: 82-19.5kHZ
Sensitivity (dB/W/m): 87+/-3dB
Impedance: 4 Ohm
Mounting Depth: >1.6 inch (40.6mm)
Voice Coil: ASVF 20.4mm
Magnet Mass: 4Oz (113g)
Net Weight: Approx. 0.6kg
