Description

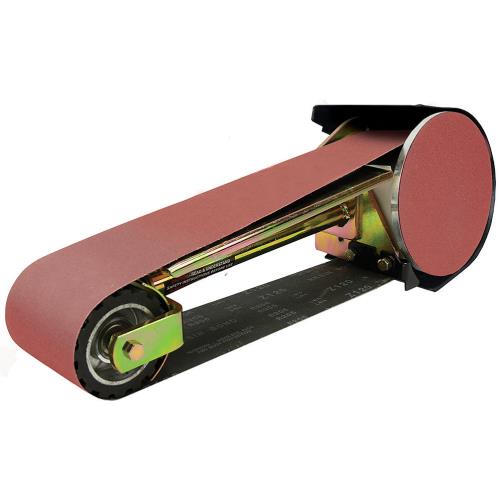

PO484 | Multitool Belt & Disc Grinding Attachment 1220x100mm
Features
The Multitool is a renowned, Australian designed belt grinding attachment which can be used on most bench grinders. The technology replaces the grinding wheel and converts a traditional grinder into a sophisticated work station ideal for sanding, grinding, sharpening, shaping, polishing and refinishing.
EFFICIENCY - Superior performance and a user friendly, toolless belt change in under 5 seconds.
VERSATILITY - Grinding, sanding or polishing in 4 positions on rubber contact wheel, platen, disc or free strapping. The unit can also be swivelled vertically or any position in between.
ACCURATE TRACKING - The running position of the belt is simple to adjust and it stays there, allowing for finishing into sharp corners.
QUALITY CONSTRUCTION - Robust, maintenance free with sealed ball bearings, hardened and ground essential components and zinc plating.
3 YEAR WARRANTY - Against faulty materials and workmanship, even when used commercially.
Specifications
48" x 4" wide (1220 x 100mm) belt.
7" (178mm) diameter disc.
3 1/2" (89mm) diameter rubber contact wheel.
5 1/2" (140mm) diameter drive wheel.
Suits most popular 8" bench grinders with a screw mounted wheel guard and a minimum of 3/4 HP.
Suits shaft sizes of 5/8" and 1/2". A steel bush is supplied to adapt the drive wheel to 1/2".
Fitting Kit supplied.
NOTE: This is an attachment only.
