Description

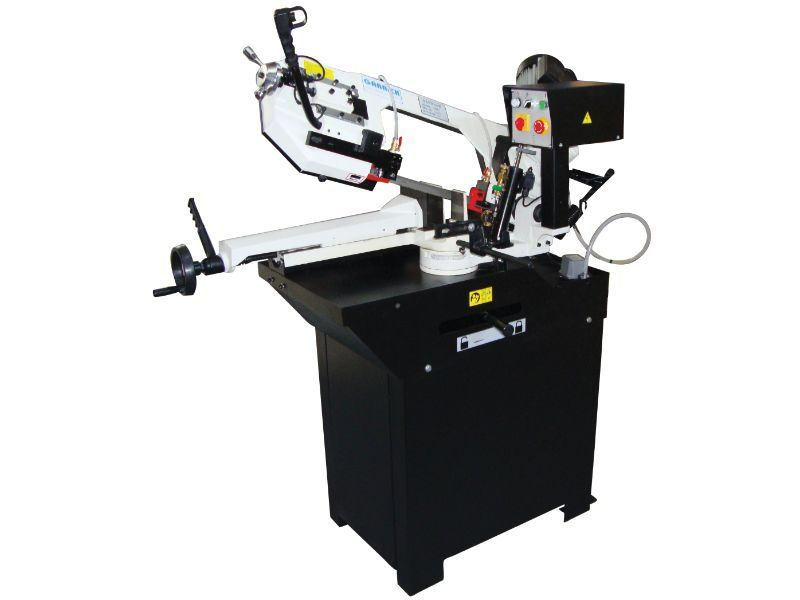

BS260GTT-3PH | Garrick Swivel Head Model BS260GTT/ was BS260HD 3 Ph Bandsaw
Can replace the function of traditional cold-cut saws, but with greater capacity
Adjustable hydraulic cylinder for automatic feed option
Swivel head can mitre cut to 60 degrees
Includes blade cleaning wire wheel
Ball bearing blade guides
Wide blade minimises run-out for more accurate cutting
Supplied on Machine Stand with integrated coolant system
Manual or automatic down feed operation
MODEL BS260GTT (New as of 11.10.23) few details may be slightly incorrect whilst new ones being sought - any issues, call the store thanks
Motor 1100 W 3 Ph 2-speed
Blade Size (mm) 2460 x 27 x 0.9
Vice Tilt 0 to 60 deg
Blade Speed (m/min) 36, 72
Cutting Capacity at 90 deg 220mm
220 x 220mm
260 x 110mm
Cutting Capacity at 45 deg 150mm
145 x 145mm
Cutting Capacity at 60 deg 90mm
85 x 85mm
Carton Dimensions (mm) 1450 x 570 x 1040 (body)
830 x 780 x 170 (stand)
Weight (kg) Nett / Gross 220 / 264
