Description

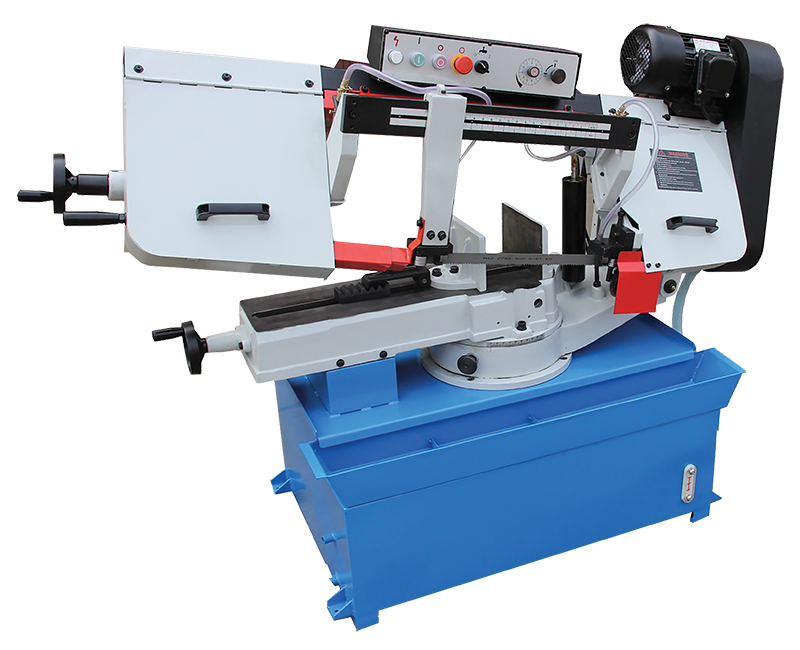

GARRICK Bandsaw 254mm (10 in) 3 Phase BS1018R
Can replace the function of traditional cold-cut saws, but with greater capacity
Adjustable hydraulic cylinder for automatic feed option
Swivel head can mitre cut to 45 deg
Ball bearing blade guides
Wide blade minimises run-out for more accurate cutting
Supplied on Machine Stand with integrated coolant system
Manual or automatic down feed operation
BS-1018R 10 inch mitre bandsaw
Motor 1.5 kW 3 Ph 2-speed
Blade Size (mm) 3215 x 27 x 0.9
Bow Swivel 0 - 45 degree
Blade Speed (m/min) 29, 50, 73, 95
Cutting Capacity at 90 deg 254mm
254 x 254mm
406 x 160mm
Cutting Capacity at 45 deg 170mm
170 x 170mm
190 x 160mm
Carton Dimensions (mm) 1820 x 780 x 1340
Weight (kg) - Nett / Gross 340 / 440
