Description

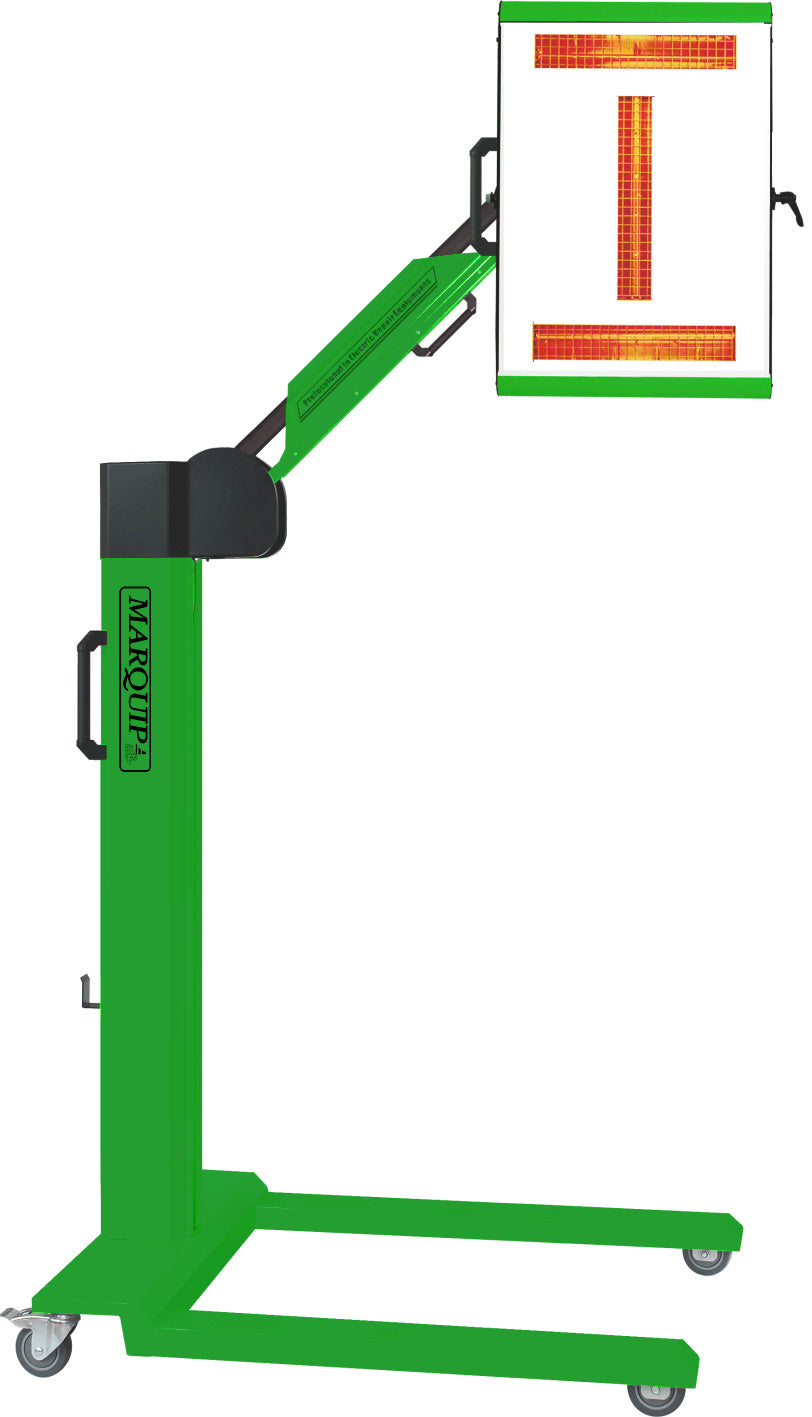

IR3 Marquip IR Curing 3X flat cantilever
Short Wave Infra-red Curing Lamp
Features:
IR series with 3 x 1000W bulbs
Gold coated reflectors with 97% reflectivity
2 optional lamp selections
4 programmable functions
Suitable for 2K solvent paints, waterbornes and fillers
Dual timers: Pre-heat (flash) and full baking (continuous) mode
Key electronic components made in USA or Japan and CE/UL certified
Heavy duty frame design on castors
Max height 2.43 m
3 bulb cassette can operate from 5cm to 200cm
Heavy duty switch
Fan cooling
[does not include distance sensor - only applies to S and ST models]
Technical data
Timing range: 2 x 35 minutes
Temperature range: 40 - 100C
Baking area: 1 x 1.1m
Power: 3000 W with 15A plug
