Description

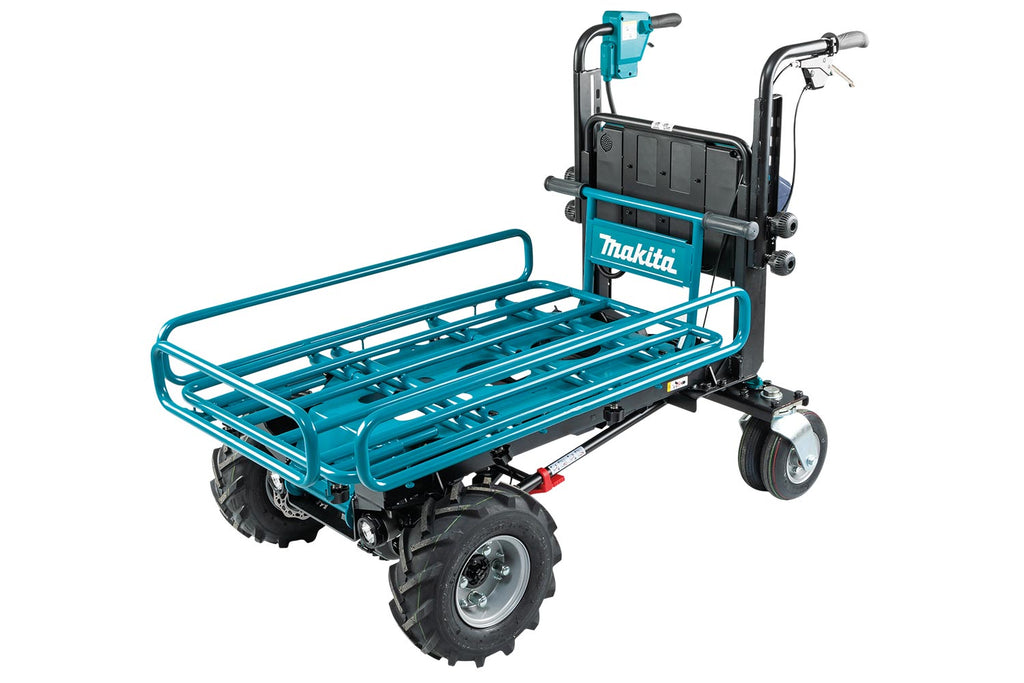

DCU604Z | Makita 18Vx2 LXT Brushless Material Handling, Dump/Pipe Frame
Pipe frame adjustable from 625-1,015 x 945-1,090mm
300kg Max load capacity up to 3° incline
7.2km travelling distance with 4 x 6.0Ah batteries*
Variable speed up to 5.0km/h + reverse
Max climbing ability up to 12° incline
Interchangeable buckets & frame option
*Flat ground, lights off, loaded with 300kg at 5.0km/h
Specifications
Continuous run time 100 minutes (4 x BL1860B)
Max load capacity
- Flat Ground 300kg
- Incline 180kg
Max Speed
- Hi 5.0kph
- Med 3.5kph
- Lo 1.5kph
- Reverse 1.0kph
Max Incline 12°
Max Travel Distance 7.2km
Overall length 1,450mm
Overall dimensions 945 - 1,090 x 625 - 1,015mm
Net weight (skin) 117.6kg
Max power output 1250W
Voltage 18Vx2 (36V)
LXT battery compatibility 1.5Ah 2Ah 3Ah 4Ah 5Ah 6Ah
Included accessories
Pipe Frame Set DCU604 (191B67-2)
Optional accessories
330mm Black Front (Fine tread for lawns/pavement) (1911K4-7)
330mm Grey Front (Avoid black tire marks on floor) (1911K5-5)
210 Grey Rear (Avoid black tire marks on floor) (1911K6-3)
