Description

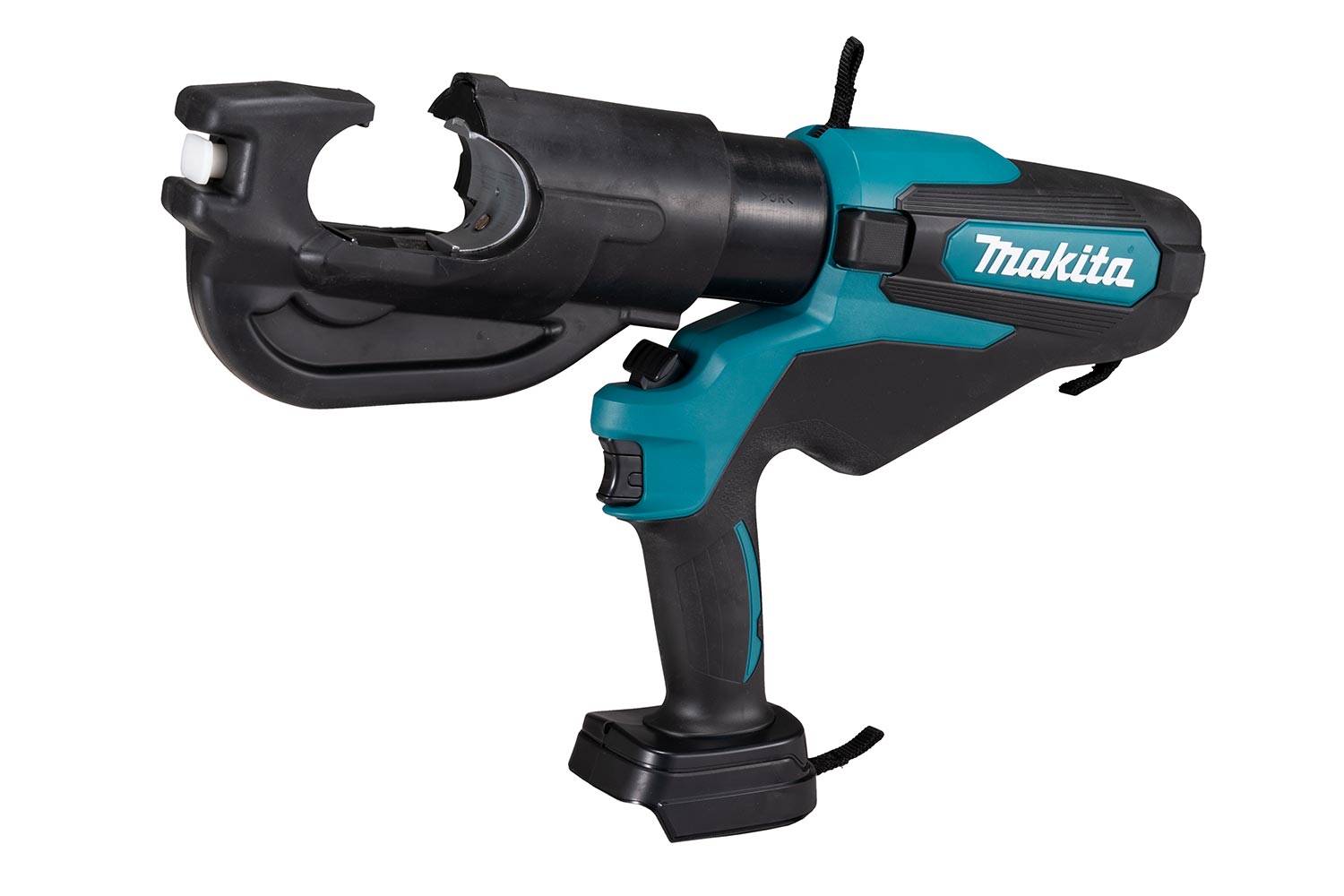

DTC302ZK | Makita 18V LXT 400mm Hydraulic Crimper

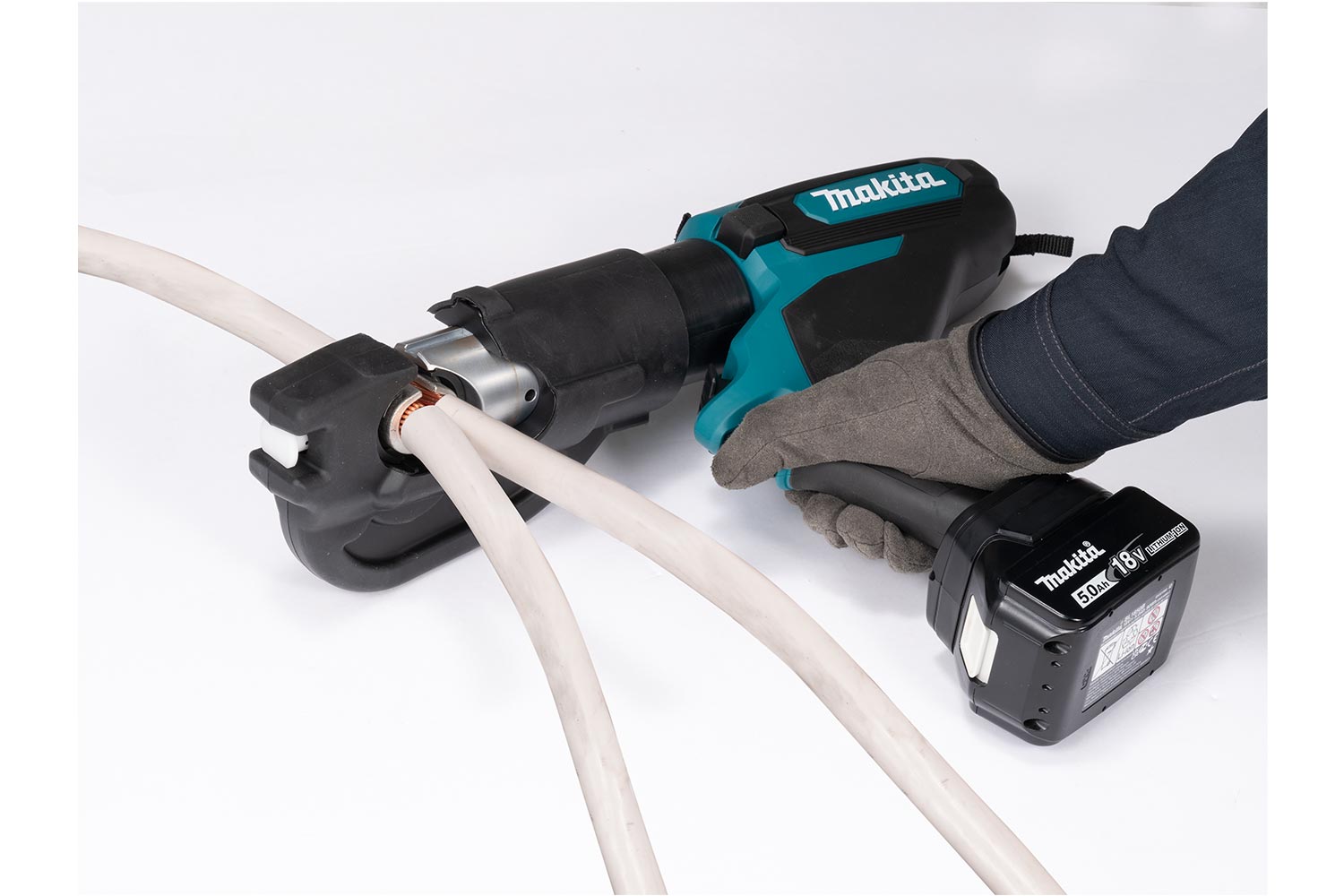

Impressive crimping capacity
copper up to 22.5mm (400mm2)
Aluminum: Up to 19.5mm (300mm2)
Auto retract function - the ram automatically retracts after crimping, boosting work efficiency

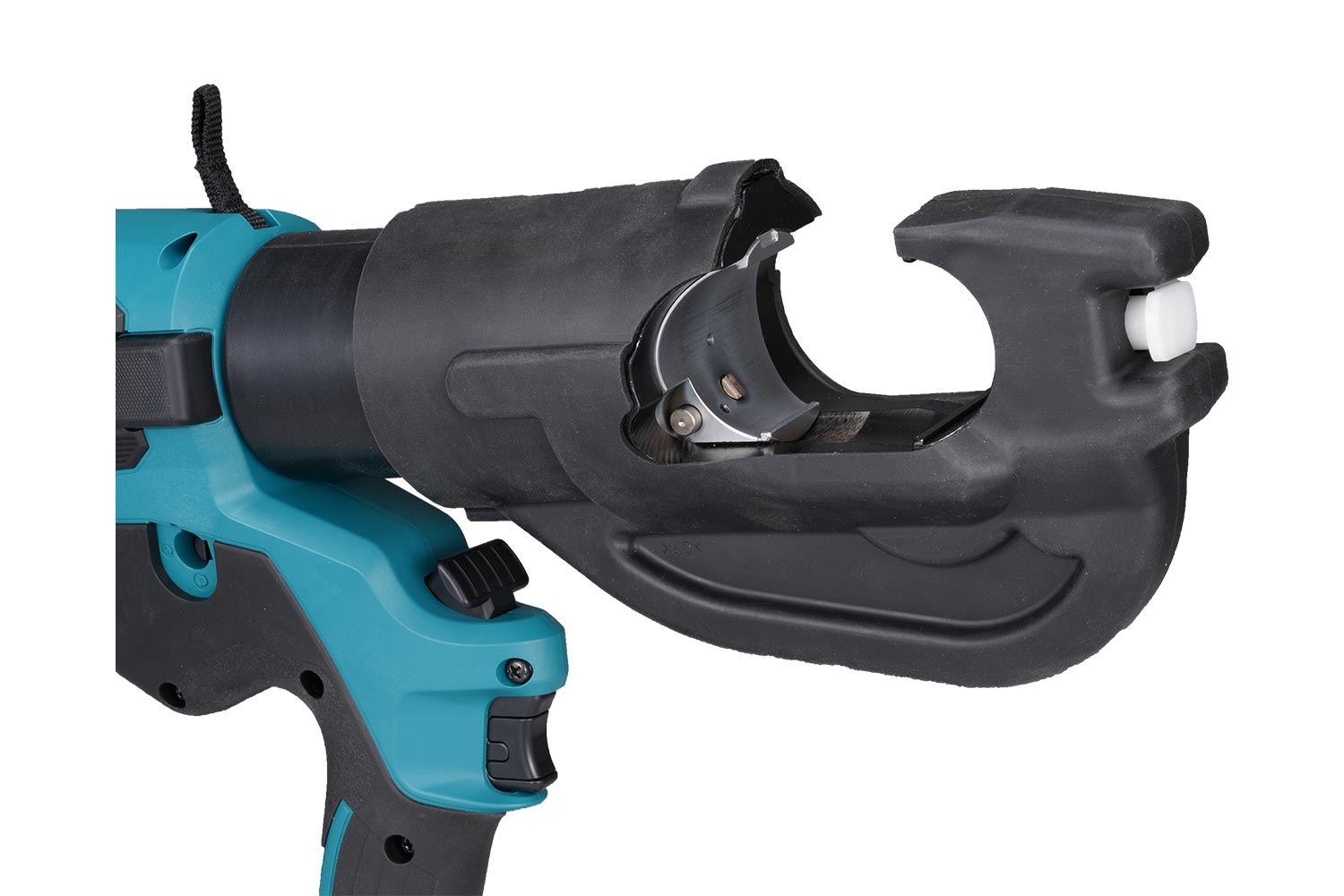

Crimping died fitment - easily swap out the optional hexagonal U-type dies by pressing the die release knob

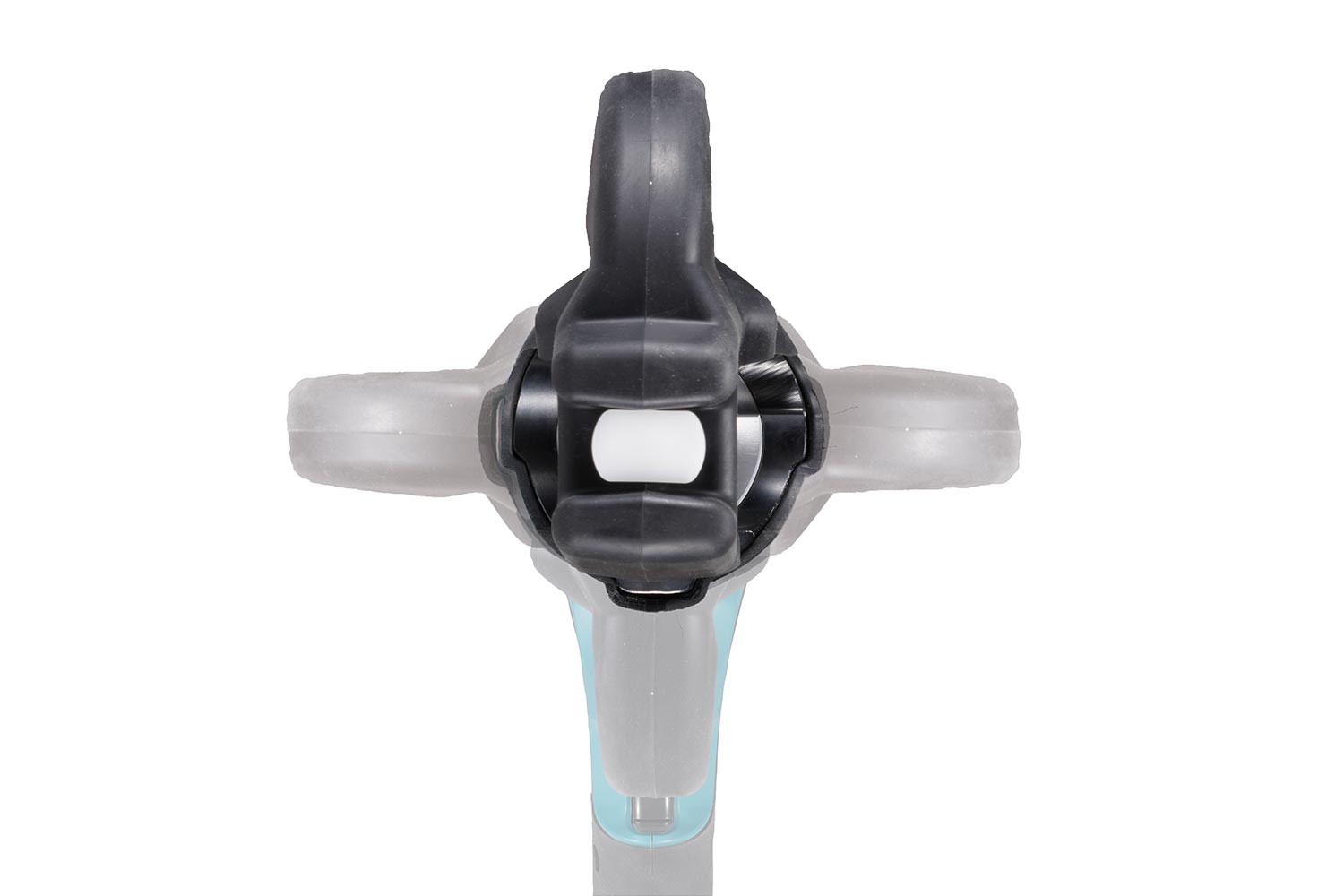

Crimping head rotates 270 degrees, making it easy to use in a variety of orientations
Specifications
-ACSR 120kN
Cuts per charge 42mm
Output force 120kN
Ram stroke length 42mm
Max Crimping capacity
-Cu Diam 22.5mm (400mm2)
-Al Diam 19.5mm (300mm2)
Overall dimensions 415mm
Net weight (skin) 7.1kg
Continuous rating input 300W
Voltage 18V
LXT battery compatibility 1.5Ah 3Ah 4Ah 5Ah 6Ah
Included accessories
Makita Carry Case
Optional accessories
Shoulder Belt (161347-8)
Dies (13 types of crimping dies, compatible with DIN standards)
18V LXT Batteries/Chargers
18V LXT Battery & Charger Pack
