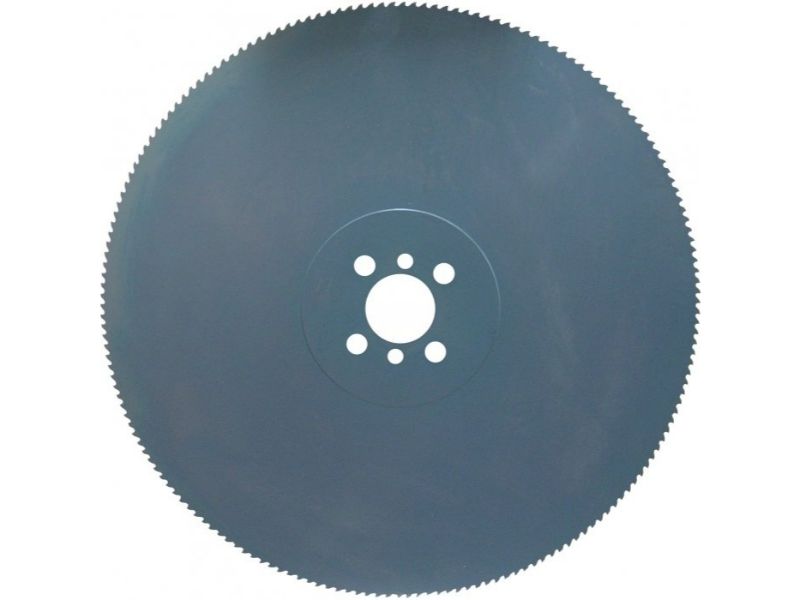

S0166 Kinkilder SAW BLADE 275 X 2 X 32 X 200T Description
Kinkelder Produces HSS Metal Circular Sawblades In Diameters Varying From 150 To 570 mm In Various Designs.
Standard Specifications:
Material M2
M2 = Din 1.3343
Manufacturing Standards:
Din 1836, 1837, 1838 And 1840
Tooth Forms: Bw, Hz
Cutting Clearance Angle: 18° / 8°
Design Hardness: Steam-Treated 63-65 Hrc
Service Life Improvement
There Are Ways Of Improving The Service Life Of A Sawblade. This Is Among Others Possible By Using A Steam-Treated Sawblade.
Steam-Treated
The Steam-Treatment Of Kinkelder HSS Sawblades Is Carried Out In A Special Oven, In Which Steam At A Constant Temperature Of 550°C Is Injected. This Process Provides A Hard Dark-Blue Layer Of Fe3O4 On The Sawblade With A Thickness Of 3 - 5µm. This Hard, Wear Resistant Oxide Layer Has A Micro-Porous Structure As A Result Of Which The Coolant Has A Better Cooling And Lubricating Effect On The Sawblade. The Result Is A Greatly Reduced Chance Of Cold-Weld And An Increase In Service Life.
