Description

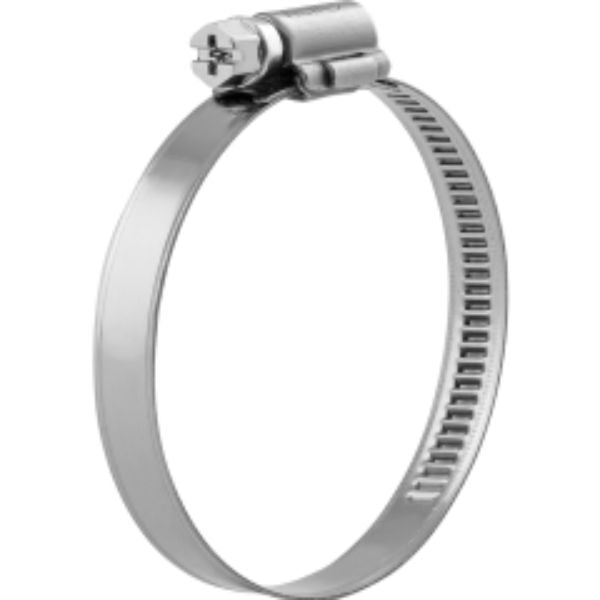

WD9812W4 9mm Band Width Worm Drive Clamp
WD9 | 8 12mm capacity | W4
Features:
Light product, easy assembly and space saving with compact housing and screw design.
Stronger and durable with the mechanically locked single piece design of housing.
Burr free and convex band edges.
100% traceability on the product.
High clamping force with low tightening torque.
Technical Spec:
Band Width 9mm
Capacity (min max) 8 12mm
Tightening Torque (max) 2.5Nm (1)
Screw Housing Length 20mm
Grade W4 Stainless Screw, Band & Housing (2)
Corrosion Resistance (min.Hour) IS0 9227 240
Screw Head PH/FL | 7mm Hex
(1) Recommended tightening torque. Recommended tightening speed 300 350 rpm
(2) Screw 1.4567 Stainless DIN EN 10088 3 or equivalent | Housing & Band 1.4301 Stainless DIN EN 10088 2 or equivalent
KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
