Description

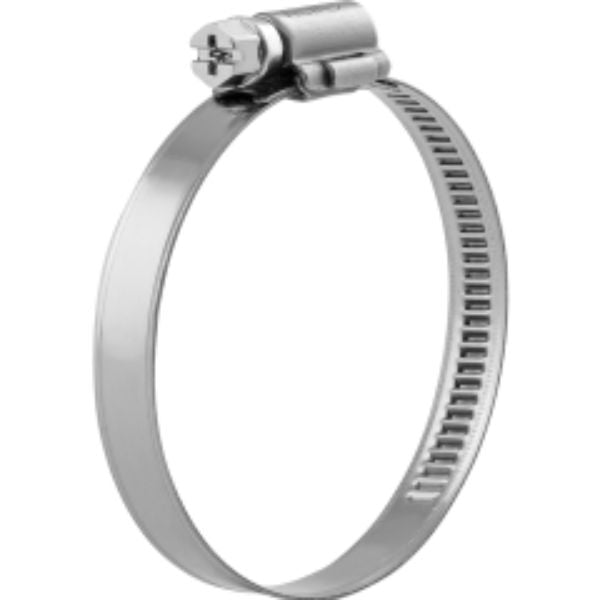

WD9812W2 9mm Band Width Worm Drive Clamp
WD9 | 8 12mm capacity | W2
Features:
Light product, easy assembly and space saving with compact housing and screw design.
Stronger and durable with the mechanically locked single piece design of housing.
Burr free and convex band edges.
100% traceability on the product.
High clamping force with low tightening torque.
Technical Spec:
Band Width 9mm Capacity (min max) 8 12mm
Tightening Torque (max) 2.5Nm (1)
Screw Housing Length 20mm
Grade W2 Zinc Plated Mild Steel Screw / Stainless Band & Housing (2)
Corrosion Resistance (min.Hour) IS0 9227 72
Screw Head PH/FL | 7mm Hex
(1) Recommended tightening torque. Recommended tightening speed 300 350 rpm
(2) Screw Mild Steel | Housing & Band 1.4016 Stainless DIN EN 10088 2 or equivalent
KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.WD9812W2 9mm Band Width Worm Drive Clamp
