Description

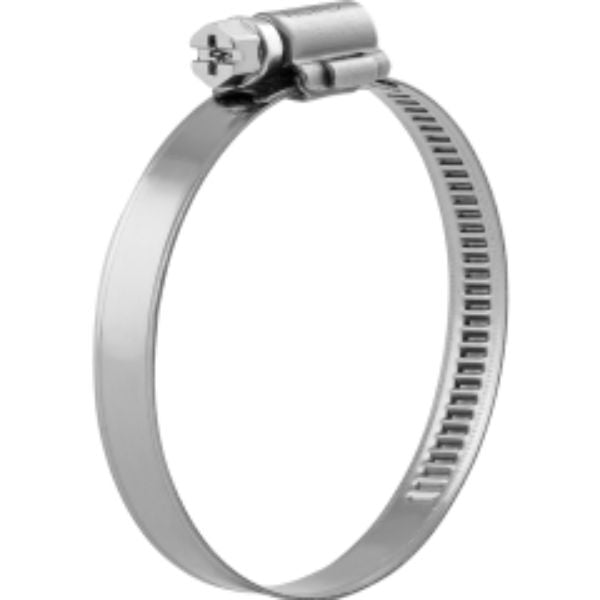

WD91220W3 9mm Band Width Worm Drive Clamp
WD9 | 12 20mm capacity | W3
Features:
Light product, easy assembly and space saving with compact housing and screw design.
Stronger and durable with the mechanically locked single piece design of housing.
Burr free and convex band edges.
100% traceability on the product.
High clamping force with low tightening torque.
Technical Spec:
Band Width 9mm
Capacity (min max) 12 20mm
Tightening Torque (max) 2.5Nm (1)
Screw Housing Length 20mm
Grade W3 Stainless Screw, Band & Housing (2)
Corrosion Resistance (min.Hour) IS0 9227 200 (3)
Screw Head FL | 7mm Hex
(1) Recommended tightening torque. Recommended tightening speed 300 350 rpm
(2) Screw 1.4016 Stainless DIN EN 10088 3 or equivalent | Housing & Band 1.4016 Stainless DIN EN 10088 2 or equivalent
(3) 10% red rust allowed on the total surface of W3 products, after salt spray test
KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
