Kale Wd9 12-20mm W2 10Pc

KaleSKU: WD91220W2

Price:
Sale price$12.25

Description

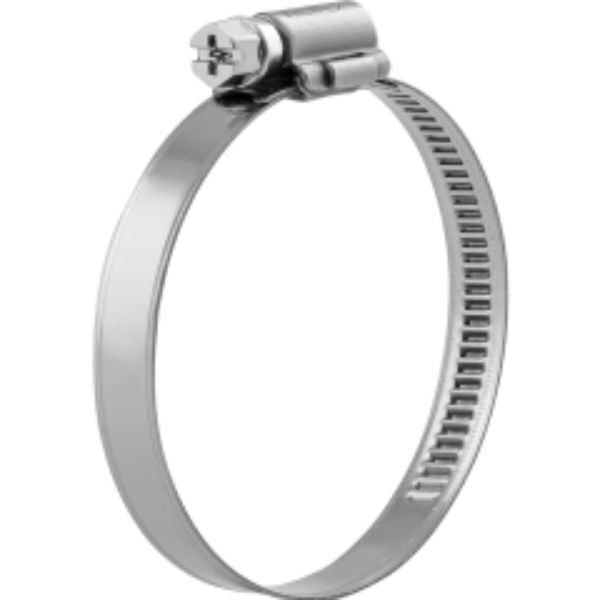

WD91220W2   9mm Band Width Worm Drive Clamp

WD9 | 12 20mm capacity | W2

Features:
Light product, easy assembly and space saving with compact housing and screw design.
Stronger and durable with the mechanically locked single piece design of housing.
Burr free and convex band edges.
100% traceability on the product.
High clamping force with low tightening torque.

Technical Spec:
Band Width   9mm
Capacity (min   max)    12 20mm
Tightening Torque (max)   2.5Nm (1)
Screw Housing Length   20mm
Grade W2   Zinc Plated Mild Steel Screw / Stainless Band & Housing (2)
Corrosion Resistance (min.Hour) IS0 9227   72
Screw Head   PH/FL | 7mm Hex

(1) Recommended tightening torque. Recommended tightening speed 300   350 rpm
(2) Screw   Mild Steel | Housing & Band   1.4016 Stainless DIN EN 10088 2 or equivalent

KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
