Description

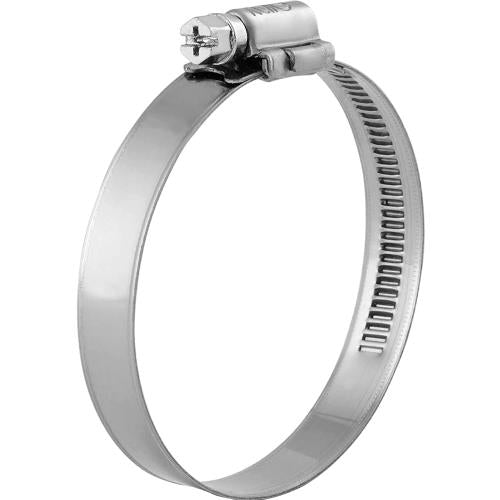

WD121627W4 - 12mm Band Width Worm Drive Clamp
WD12 | 16-27mm capacity | W4
Features:
Light product, easy assembly and space saving with compact housing and screw design.
Stronger and durable with the mechanically locked single piece design of housing.
Burr-free and convex band edges.
100% traceability on the product.
High clamping force with low tightening torque.
Technical Spec:
Band Width - 12mm
Capacity (min - max) - Diam 16-27mm
Tightening Torque (max) - 5.0Nm (1)
Screw Housing Length - 24mm
Grade W4 - Stainless Screw, Band & Housing (2)
Corrosion Resistance (min.Hour) IS0 9227 - 240
Screw Head - FL | 7mm Hex
(1) Recommended tightening torque. Recommended tightening speed 300 - 350 rpm
(2) Screw - 1.4567 Stainless DIN EN-10088-3 or equivalent | Housing & Band - 1.4301 Stainless DIN EN-10088-2 or equivalent
KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
