Description

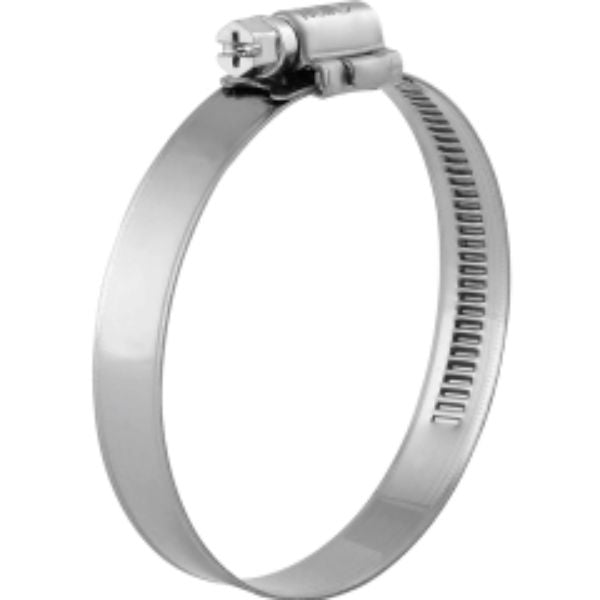

WD12140160W4 12mm Band Width Worm Drive Clamp
WD12 | 140 160mm capacity | W4
Features: Light product easy assembly and space saving with compact housing and screw design. Stronger and durable with the mechanically locked single piece design of housing. Burr free and convex band edges. 100% traceability on the product. Higher tightening torque and clamping force with 12mmband width. High clamping force with low tightening torque.
Technical Spec: Band Width 12mm Capacity (min max) 140 160mm Tightening Torque (max) 5.0Nm (1) Screw Housing Length 24mm Grade W4 Stainless Screw Band & Housing (2) Corrosion Resistance (min. Hour) IS0 9227 240 Screw Head FL | 7mm Hex
(1) Recommended tightening torque. Recommended tightening speed 300 350 rpm(2) Screw 1.4567 Stainless DIN EN 10088 3 or equivalent |Housing & Band 1.4301 Stainless DIN EN 10088 2 or equivalent
KALE is certified with ISO TS 16949 ISO 9001 ISO 14001 management systems as per the expectations of the global automotive
