Description

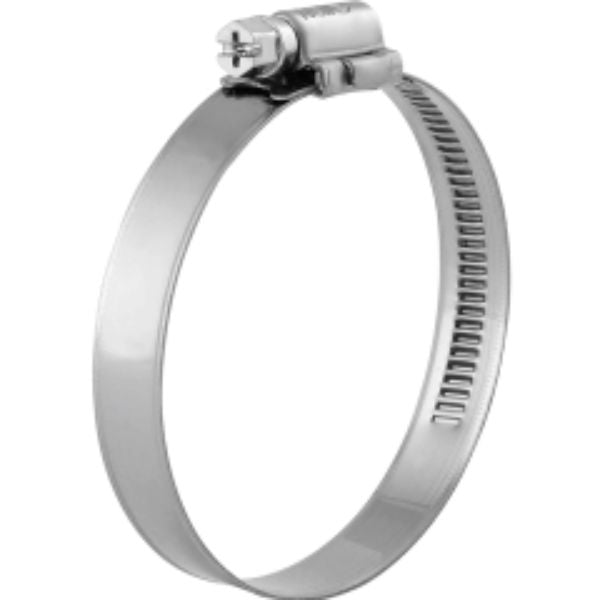

WD12130150W3 12mm Band Width Worm Drive Clamp
WD12 | 130 150mm capacity | W3
Features: Light product easy assembly and space saving with compact housing and screw design. Stronger and durable with the mechanically locked single piece design of housing. Burr free and convex band edges. 100% traceability on the product. High clamping force with low tightening torque.
Technical Spec: Band Width 12mm Capacity (min max) 130 150mm Tightening Torque (max) 5.0Nm (1) Screw Housing Length 24mm Grade W3 Stainless Screw Band & Housing (2) Corrosion Resistance (min. Hour) IS0 9227 200 (3) Screw Head FL | 7mm Hex
(1) Recommended tightening torque. Recommended tightening speed 300 350 rpm(2) Screw 1.4016 Stainless DIN EN 10088 3 or equivalent |Housing & Band 1.4016 Stainless DIN EN 10088 2 or equivalent(3) 10% red rust allowed on the total surface of W3products after salt spray test
KALE is certified with ISO TS 16949 ISO 9001 ISO 14001management systems as per the expectations of the global automotive industry.
