Description

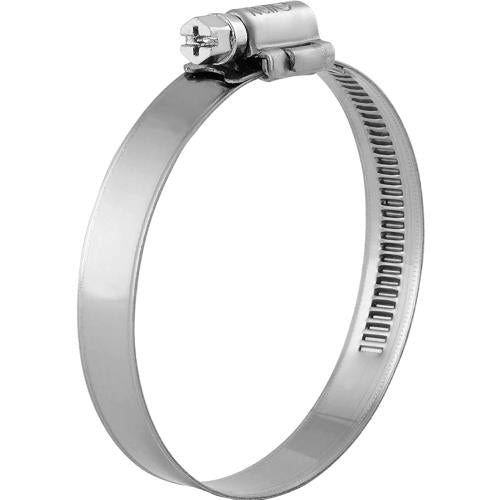

WD12100120W1 | Kale WD12 100-120mm W1 (10pc)
Worm Drive 12 | 100-120mm Capacity | W1
Features:
Light product, easy assembly and space saving with compact housing and screw design.
Stronger and durable with the mechanically locked single piece design of housing.
Burr-free and convex band edges.
100% traceability on the product.
High clamping force with low tightening torque.
Higher tightening torque and clamping force with 12mm band width.
Technical Spec:
Band Width - 12mm
Capacity (min - max) - Diam 100-120mm
Tightening Torque (max) - 5.0Nm (1)
Screw Housing Length - 24mm
Grade W1 - Screw(Zinc Plated), Band(Zinc Aluminium Plated) & Housing(Zinc Plated)
Corrosion Resistance (min.Hour) IS0 9227 - 72
Screw Head - FL | 7mm Hex
(1) Recommended tightening torque. Recommended tightening speed 300 - 350 rpm
(2) Screw & Housing (Zinc Plated) | Band – Mild Steel (Zinc Plated)
KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
