Description

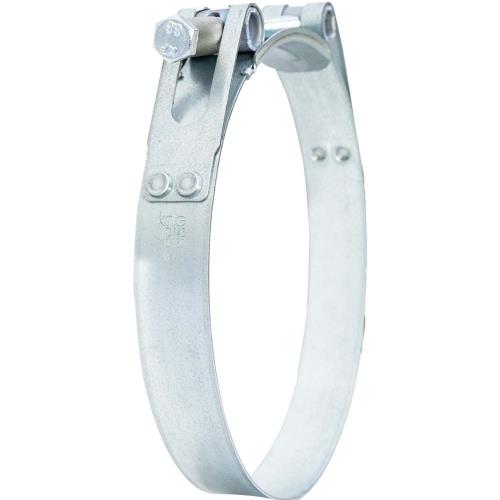

HD25140150W1T | Kale HD25 140 150mm W1 TOX (ea)
Innovatively designed and meticulously engineered KaleHeavy Duty T Bolt clamps have achieved new standards in performance and reliability
Kale HD T Bolt clamps are manufactured utilising TOX Clinching joints. A cold forming press technique that is more than 70% stronger than welding and superior to tabstyle mechanical locks. Produced in Europe to DIN 3017 3 standards Kale HDT Boltclamps are suitable for high shore hardness or reinforced hoses.
Additional design features include: No welding and no contact corrosion points Hollow shape trunnions to reduce tensile force onthebolt and clinched joint A profiled bridge with extended tabs for secure attachment to the band without welding W1 steel bolts are Class 8.8 and feature an integratedspacer in place of a separate bush Rolled band edges which are designed to protect damage to the hose or wall fabric A high clamping force with low free torque value.
Specification Band With: 25mm Hex: 13mm Diameter Range: 140 150mm Tightening Torque: 20Nm
Materials Band: Carbon Steel Bridge: Carbon Steel Bolt: ISO 898 1 Class 8.8* Bush: Trunnion: Carbon Steel* Corrosion Resistance acc. to ISO 9227: Min. 72 hours*Zinc Plated
Available in 2 materials (W1 and W4) in sizes ranging from17 19mm through to 239 252 mm typical applications include suction and pump hoses across a wide range of Industries Agriculture Automotive Marine Mining Plumbing OEMs.
