Description

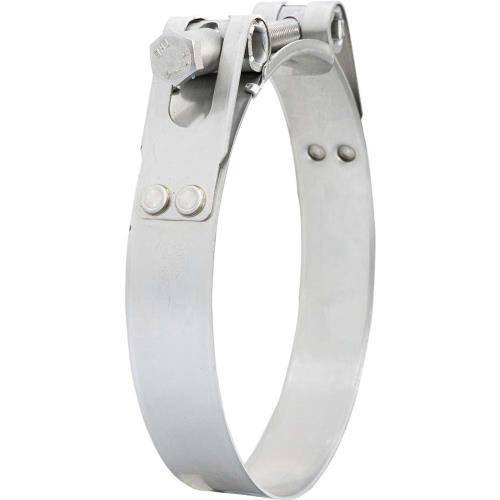

HD25112121W4T | Kale HD25 112-121mm W4 TOX (ea)
Innovatively designed and meticulously engineered, Kale Heavy Duty T-Bolt clamps have achieved new standards in performance and reliability
Kale HD T-Bolt clamps are manufactured utilising TOX-Clinching joints. A cold forming press technique that is more than 70%stronger than welding and superior to tab style mechanical locks.
Produced in Europe to DIN 3017-3 standards, Kale HD T-Bolt clamps are suitable for high shore hardness or reinforced hoses.
Additional design features include:
No welding and no contact corrosion points
Hollow D shape trunnions to reduce tensile force on the bolt and clinched joint
A profiled bridge with extended tabs for secure attachment to the band without welding
W1 steel bolts are Class 8.8 and feature an integrated spacer in place of a separate bush
Rolled band edges which are designed to protect damage to the hose or wall fabric
A high clamping force with low free torque value.
Specification
Band With: 25mm
Hex: 13mm
Diameter Range: 112 -121mm
Tightening Torque: 20Nm
Materials
Band: Stainless Steel 1.4301
Bridge: Stainless Steel 1.4301
Bolt: ISO 3506-1 Class A2-70
Bush: Stainless Steel 1.4301
Trunnion: Stainless Steel 1.4301
Corrosion Resistance acc. to ISO 9227: Min. 240 hours
Available in 2 materials (W1 and W4) in sizes ranging from17-19mm through to 239-252 mm, typical applications include suction and pump hoses across a wide range of
Industries:
Agriculture
Automotive
Marine
Mining
Plumbing
OEMs.
