Description

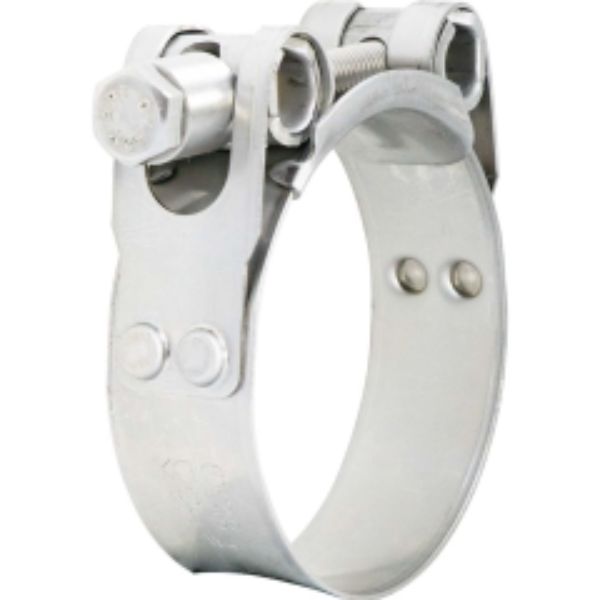

HD205155W4T | Kale HD20 51 55mm W4 TOX (ea)
Innovatively designed and meticulously engineered Kale Heavy Duty T Bolt clamps have achieved new standards in performance and reliability
Kale HD T Bolt clamps are manufactured utilising TOX Clinching joints. A cold forming press technique that is more than 70% stronger than welding and superior to tab style mechanical locks. Produced in Europe to DIN 3017 3 standards Kale HDT Bolt clamps are suitable for high shore hardness or reinforced hoses.
Additional design features include: No welding and no contact corrosion points Hollow shape trunnions to reduce tensile force on the bolt and clinched joint A profiled bridge with extended tabs for secure attachment to the band without welding W1 steel bolts are Class 8.8 and feature an integrated spacer in place of a separate bush Rolled band edges which are designed to protect damage to the hose or wall fabric A high clamping force with low free torque value.
Specification Band With: 20mm Hex: 10mm Diameter Range: 51 55mm Tightening Torque: 10Nm
