Description

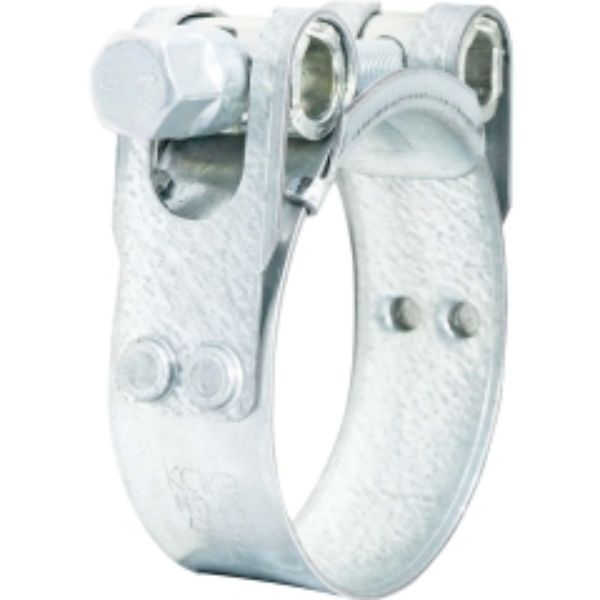

HD204751W1T | Kale HD20 47 51mm W1 TOX (ea)
Innovatively designed and meticulously engineered, Kale Heavy Duty T Bolt clamps have achieved new standards in performance and reliability
Kale HD T Bolt clamps are manufactured utilising TOX Clinching joints. A cold forming press technique that is more than 70% stronger than welding and superior to tab style mechanical locks.
Produced in Europe to DIN 3017 3 standards, Kale HD T Bolt clamps are suitable for high shore hardness or reinforced hoses.
Additional design features include:
No welding and no contact corrosion points
Hollow D shape trunnions to reduce tensile force on the bolt and clinched joint
A profiled bridge with extended tabs for secure attachment to the band without welding
W1 steel bolts are Class 8.8 and feature an integrated spacer in place of a separate bush
Rolled band edges which are designed to protect damage to the hose or wall fabric
A high clamping force with low free torque value.
Specification
Band With: 25mm
Hex: 13mm
Diameter Range: 104 112mm
Tightening Torque: 20Nm
Materials
Band: Carbon Steel
Bridge: Carbon Steel
Bolt: ISO 898 1 Class 8.8*
Bush:
Trunnion: Carbon Steel*
Corrosion Resistance acc. to ISO 9227: Min. 72 hours
*Zinc Plated
Available in 2 materials (W1 and W4) in sizes ranging from17 19mm through to 239 252 mm, typical applications include suction and pump hoses across a wide range of
Industries
Agriculture
Automotive
Marine
Mining
Plumbing
OEMs.
