Description

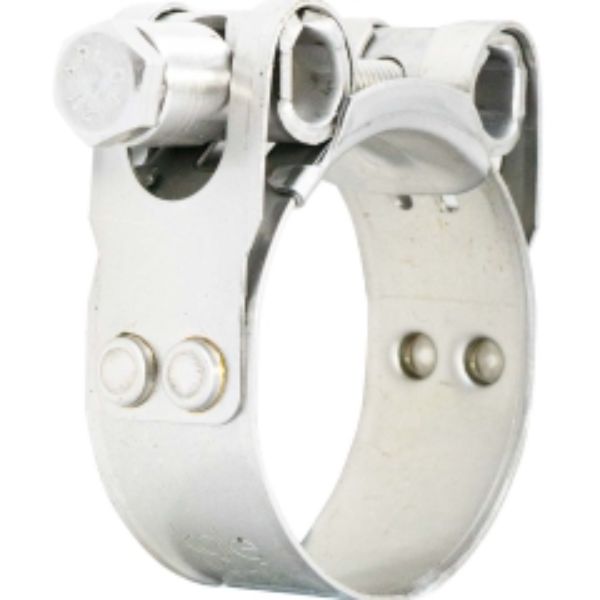

HD203740W4T | Kale HD20 37 40mm W4 TOX (ea)
Innovatively designed and meticulously engineered Kale Heavy Duty T Bolt clamps have achieved new standards in performance and reliability
Kale HD T Bolt clamps are manufactured utilising TOX Clinching joints. A cold forming press technique that is more than 70% stronger than welding and superior to tab style mechanical locks. Produced in Europe to DIN 3017 3 standards Kale HDT Bolt clamps are suitable for high shore hardness or reinforced hoses.
Additional design features include: No welding and no contact corrosion points Hollow shape trunnions to reduce tensile force on the bolt and clinched joint A profiled bridge with extended tabs for secure attachment to the band without welding W1 steel bolts are Class 8.8 and feature an integrated spacer in place of a separate bush Rolled band edges which are designed to protect damage to the hose or wall fabric A high clamping force with low free torque value.
Specification Band With: 20mm Hex: 10mm Diameter Range: 37 40mm Tightening Torque: 10Nm
Materials Band: Stainless Steel 1.4301 Bridge: Stainless Steel 1.4301 Bolt: ISO 3506 1 Class A2 70 Bush: Stainless Steel 1.4301 Trunnion: Stainless Steel 1.4301 Corrosion Resistance acc. to ISO 9227: Min. 240 hours
Available in 2 materials (W1 and W4) in sizes ranging from17 19mm through to 239 252 mm typical applications include suction and pump hoses across a wide range of Industries Agriculture Automotive Marine Mining Plumbing OEMs.
