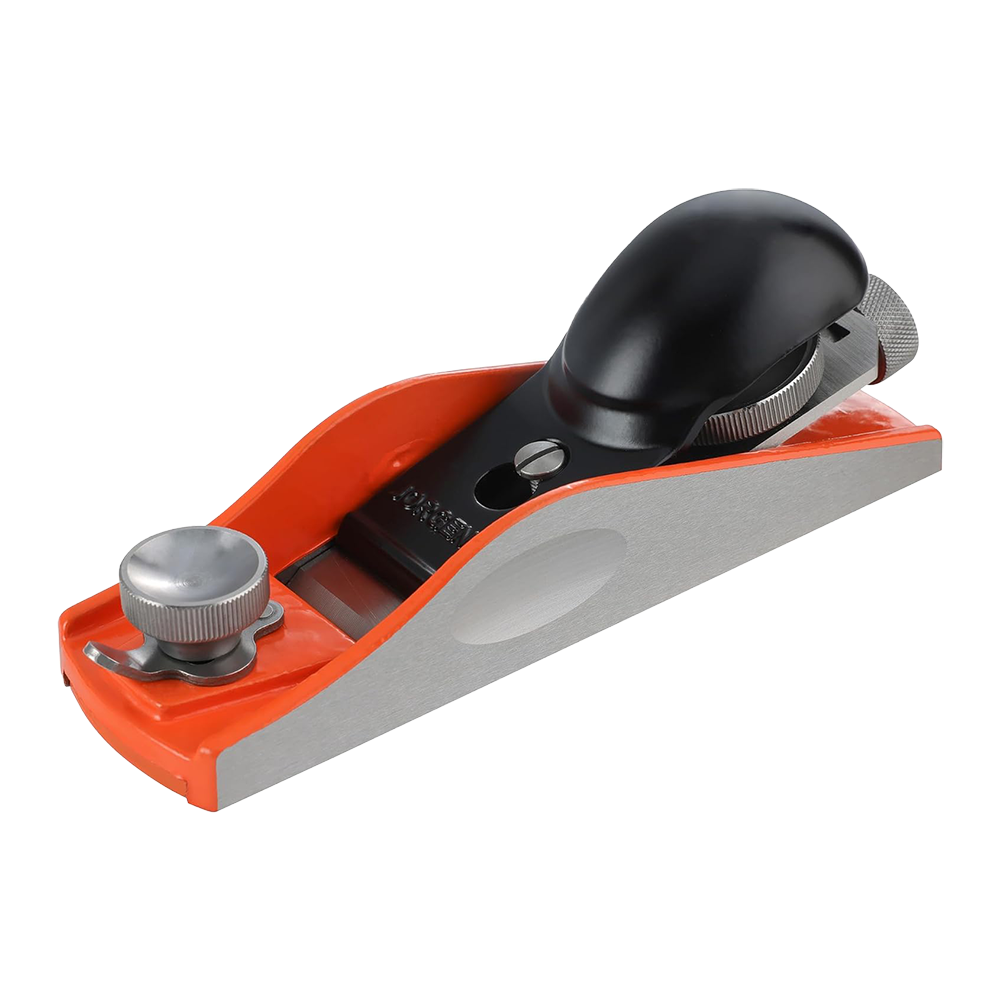

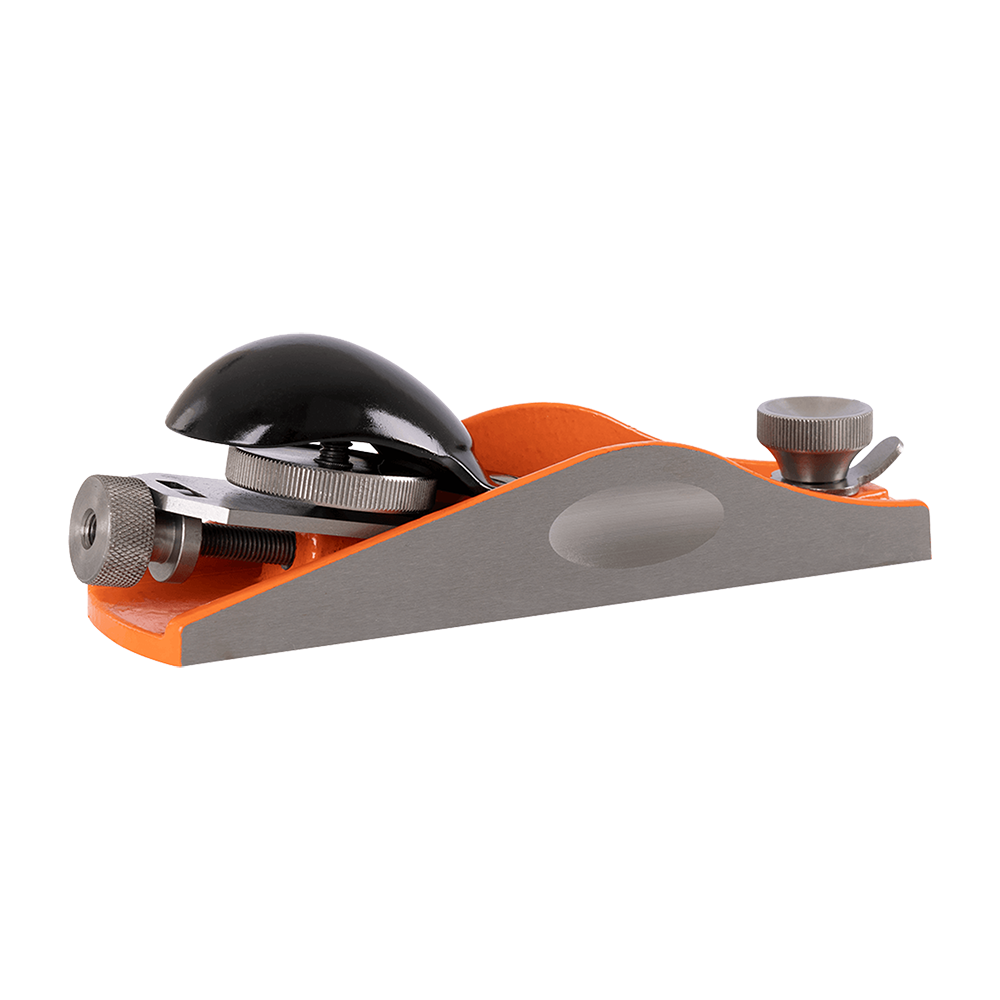

JORGENSEN Low Angle Adjustable Mouth Block Plane

JORGENSENSKU: AJP70710

Price:
Sale price$83.11

Description

AJP70710 JORGENSEN Low Angle Adjustable Mouth Block Plane

Based on the Stanley 60 1/2, this is one of the most popular block plane. 1/8 in. thick O1 steel blade provides excellent edge retention. The adjustable mouth can close up to the blade when taking the finest of shavings or open up when taking coarse shavings. The blade is adjusted with a captive adjuster nut for precise control with minimal backlash. The blade is flat ground at 25 deg and sits bevel up in the body at 12 deg makes a 37 deg low cutting angle out of the box for planing end grain and general purpose work. Heavy gauge (3mm) Pro O1 Steel blade is more durable and provides a solid cut with minimal vibration. Ductile iron is far stronger and more resilient. Stress relieving metal ensures the machined casting will stay flat over time.

Features:

Heavy gauge (3mm) O1 blade is more durable.
Ductile iron is far stronger and more resilient.
Stress relieving metal ensures the machined casting will stay flat over time.
Adjustment screw helps provide preferred cutting depths.
Specifications:

Length: 160mm (6.3")
Width: 44.5mm
Blade Length: 112mm
Blade Width: 35mm
Blade Thickness: 3mm
Weight: 671g
