Description

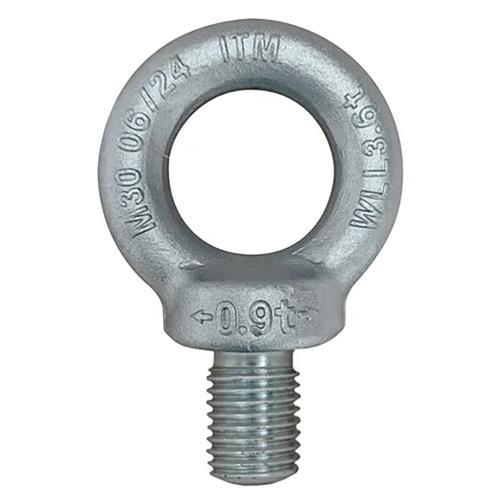

TM9240-02300 | ITM Lifting Shoulder Eyebolt Din 580 - 30mm - 3.6T
Features
Galvanised finish
Specifications, batch and brand markings as per Australian Standards requirements
Tested and certified to AS 2317
Specifications
Thread: M30
W.L.L (t): 3.6
Dimension D (mm): 30
Dimension D1 (mm): 60
Dimension D2 (mm): 65
Dimension D3 (mm): 24
Dimension H (mm): 109
Dimension H1 (mm): 45
Dimension W (mm): 108
