TM9003-03003 | ITM Electric Hoist, 415V, 3 Ton, 3 Meter Lift
Features
Japanese technology with dual braking system to ensure safe and reliable operation
Dual Speed
Compact and light weight design
Weight overload limiter for safety
Dual-gear drive system providing smooth and quiet operation
Three phase, 415V motor
Upper and lower limit switches to prevent chain runout
Chain length can be altered by ITM to your required length
Tested & certified to AS 1418.2
Test certificate & user manual supplied
Replacement Chain 7.1mm TM9810-01607-1
Replacement Chain 11.2mm TM9810-04011-2
Specifications
Rated Capacity: 3 Tonne
Standard Lift: 3m
Running Test Load: 37.5kN
Motor: 3000W 415V 3P
No. of Chain Drops: 1
Chain Type: Grade 80 11.2mm
Lift Speed: 5.4 & 1.8m/min
Net Weight: 122kg
Extra Weight Per Metre Of Extra Lift: 2.8kg

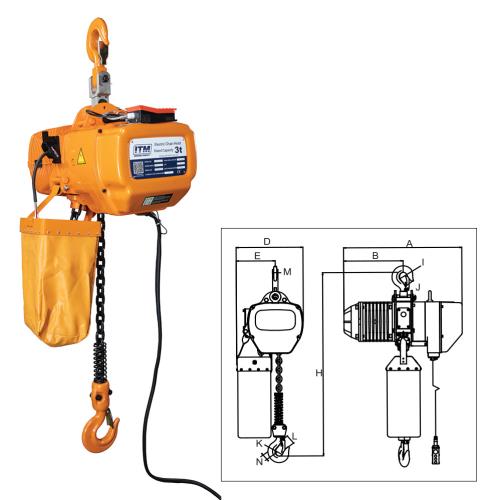

Dimensions (mm)
A: 670
B: 313
D: 430
E: 265
H: 845
I: 58
J: 47
K: 58
L: 47
M: 36
N: 36
