Description
TM9814-00100 | ITM Concrete Lifting Clutch Panel Lifter 10T
Features
Specifically designed for lifting precast concrete elements with an embedded pin
Easily engages under load, ensuring proper connection
Simple clutch release when lifting completed
Available in working load limits ranging from 1.3t to 20t
Tested and certified to AS 3850.1
Specifications
W.L.L. (t): 10
B.L. (t): 40

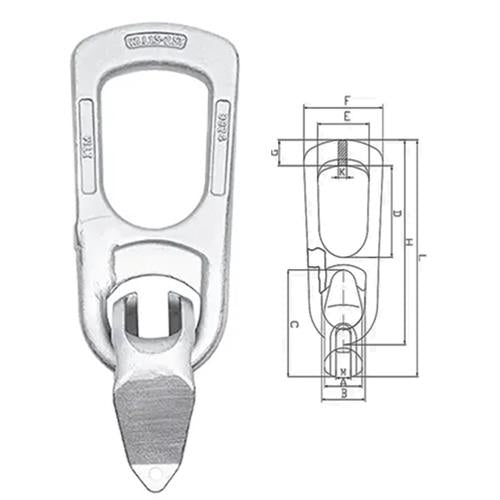

Dimension A (mm): 73
Dimension B (mm): 92
Dimension C (mm): 176
Dimension D (mm): 116
Dimension E (mm): 83
Dimension F (mm): 161
Dimension H (mm): 342
Dimension M (mm): 30
Dimension L (mm): 391
Dimension G (mm): 51
Dimension K (mm): 27
Weight (kg): 9.13
