Description

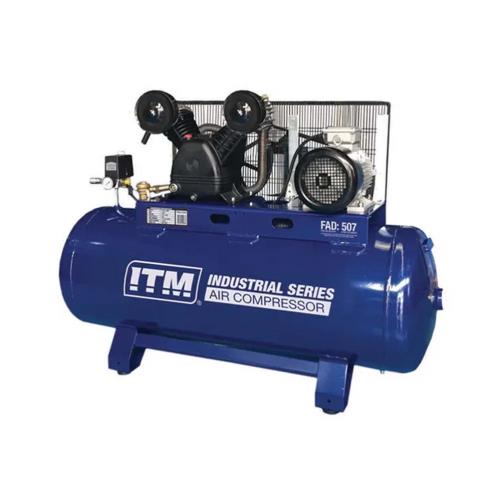

TM353-55200 | ITM Air Compressor Stationary 5.5HP | 200L | 3 Phase
FEATURES
Twin cast iron cylinder oil lubricated pump with aluminium head.
Powerful high efficiency induction motor.
Soft start valve for electric motor protection.
Thermal overload protection with manual reset.
Full brass non-return valve.
Certified safety valve.
Reliable Condor pressure switch.
Includes twin outlet one-touch “Nitto style” connectors.
SPECIFICATIONS
Motor: 5.5HP - Three Phase 415V
Tank Capacity: 200 L
Max Pressure: 147 PSI (10 Bar)
Pump Displacement: 605 L/min (21.4 CFM)
Free Air Delivery: 507 L/min (17.9 CFM)
Pump RPM: 860
Package Dimensions: 146cm L x 57cm W x 124cm H
Compressor Dimensions: 138cm L x 48cm W x 103cm H
