Description

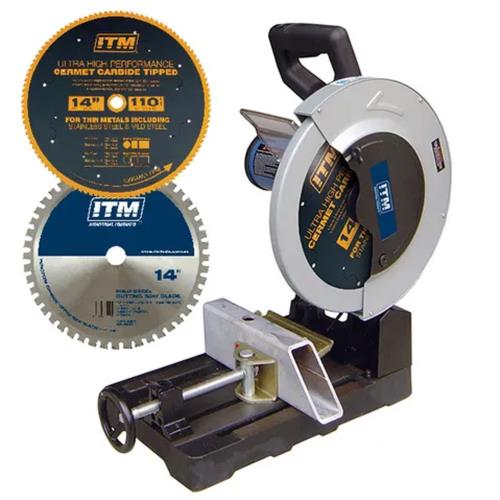

S14-PROKIT | ITM 350mm Metal Cutting Drop Saw, 240V, Inc. 66T TCT Mild Steel &110T Cermet Blade
Features
The S14 PRO KIT is a highly versatile 14" Metal Cutting Saw designed for cutting all metals including Stainless Steel and Mild Steel. Operating at 1500rpm to deliver a cold cut which is burr free, clean, cold and precise. If you are searching for a cost effective method for cutting Stainless Steel and Mild Steel metals, this saw is perfect for you. The heavy duty industrial construction offered by ITM makes this saw perfect for any professional workshop.
2 Blade Kit:
1x 350mm Tungsten Carbide Tipped blade with 66 teeth for cutting Mild Steel.
1x 350mm Cermet Carbide Tipped Blade with 110 teeth for cutting stainless steel.
Perfect for stainless steel, mild steel, aluminium, thin material and thick material.
Saves time & money giving cool cuts that need little to no finishing, eliminating any need for grinding or cool down time.
The fully enclosed retractable guard increases user safety.
Heavy-duty vice 90 deg - 45 deg.
Pipe vice attachment.
12 months warranty.
Content:
1x S14
1x SSBL350-MS
1x SSBL350-CERMET110
Specifications
Motor: 2200W, 3.0hp Single Phase 240V
Blade Speed: Single Speed 1450rpm
Blade Size: 350mm
Blade Bore: 25.4mm
Weight: 29kg
90 degree Cutting Capacity:
Solid Round: 25mm
Hollow Round: 120mm
Square: 120mm
Rectangle: 120 x 120mm
45 degree Right Cutting Capacity:
Solid Round: 25mm
Hollow Round: 90mm
Square: 90mm
Rectangle: 120 x 90mm
Maximum Material Thickness:
Solid Thickness:
Mild Steel: Min: 2mm, Max. 25mm
Stainless Steel: Min: 2mm, Max. 6mm
Wall Thickness:
Mild Steel: Min: 1mm, Max. 12mm
Stainless Steel: Min: 1mm, Max. 6mm
Replacement Blades:
SSBL350-MS for mild steel to 25.4mnm
SSBL350-TS for thin mild steel to 6mm
SSBL350-AL for aluminium to 25.4mm
SSBL350-CERMET64 for stainless steel to 25mm
SSBL350-CERMET110 for stainless steel to 6mm
SSBL350-CERMET110 for stainless steel to 6mm
