Description

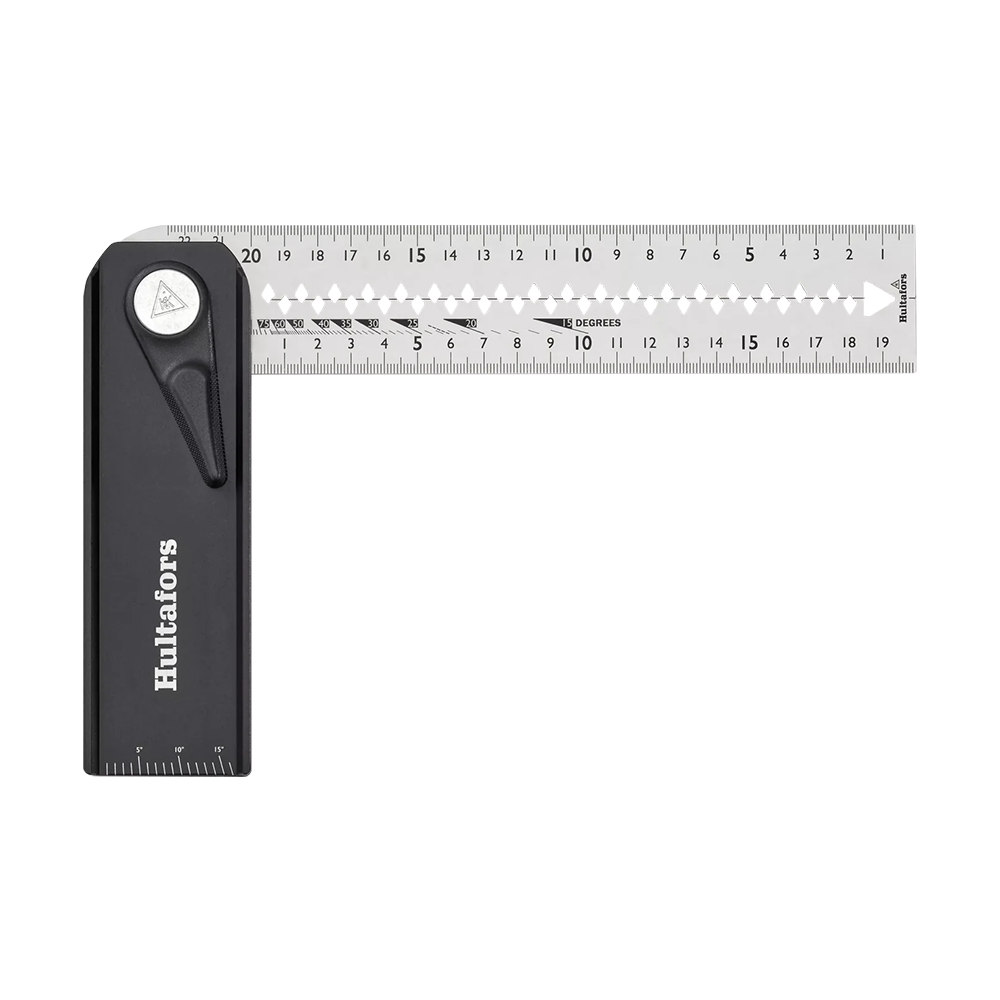

HU256023 | Hultafors #256023 QUATTRO BEVEL SQUARE - 245mm
This innovative adjustable square functions as a bevel square and angle finder in one. The 250mm stainless steel blade rotates to fixed positions at 45, 90, 135, 180, 225 and 270 degrees, and can be locked at any angle between 0 and 270 degrees using the lever. Both blade and handle feature angle scales from 0 to 90 degrees. The 45mm-wide blade suits standard studs, with a centre line for fast marking and 5mm-spaced scribing notches for parallel lines. Fully foldable for pocket storage, the tool features a CNC-milled stock, laser-cut blade, and ±0.06 degree angle tolerance—designed for accuracy, durability and demanding site conditions.
Features:
Adjustable with fixed positions for 45, 90, 135, 180, 225 and 270 degrees
Can be used as a lockable bevel square.
Laser etched millimetre graduation with very high contrast and abrasion resistance.
The stock is made of fully anodized aluminum.
Angle scale on both blade and handle (0 to 90 degree).
Fully foldable for easy storage.
Specifications:
Blade Length: 250mm
Blade Width: 45mm
Blade Thickness: 1mm
Handle Thickness: 19mm
Fixed Positions: 45, 90, 135, 180, 225, 270 degrees
Angle Scale: 0 to 90 degrees
Blade Material: Stainless Steel
Handle Material: Aluminium
Graduations: mm
Accuracy: ±0.06 degrees (±1 mm/m)
