Description

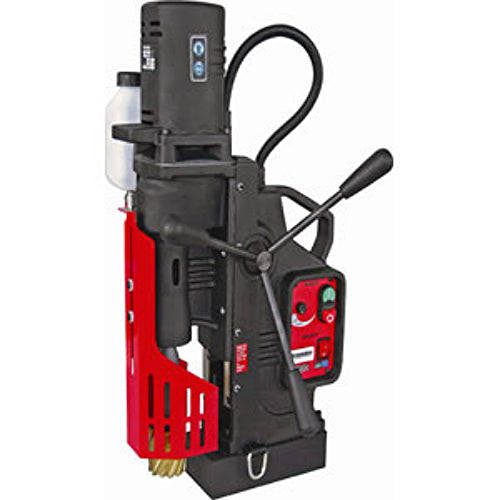

HMPRO75 HOLEMAKER PRO 75 MAGNETIC BASE DRILL 1800W / VARI
RPM
The Holemaker PRO 75 is a versatile, multi purpose machine, equipped with a #3 Morse Taper Spindle.
The 2 speed gearbox with electronic variable speed, Electronic Speed Stabilization System (ESSS), and motor soft start feature makes this machine ideal for tapping.
With a large cutting capacity of 75mm diameter and 75mm depth (110mm with optional arbor) using Holemaker Cutters, this machine will suffice for most holemaking requirements.
Other standard features include gravity feed coolant system & left or right hand feed handle operation.
Coolant Tank Capacity: 450ml
*The Holemaker PRO 75 is also available with a swivel base system.
SPECIFICATIONS:
Capacity (Diameter max) 75mm
Capacity (Depth of Cut max) 110mm
Capacity ( Twist Drills) #3 Morse Taper 32mm
Motor Input Power 1800 Watt
Motor Output Power 1650 Watt
Gearbox 2 Speed with electronic variable speed 80 160; 210 420 RPM and motor soft start feature
Magnet Dead Lift 19500nm
Weight 27.0kg
