Description

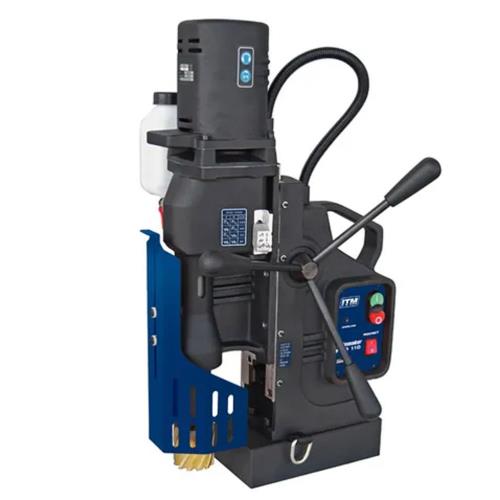

HMPRO110 - HOLEMAKER PRO 110 MAGNETIC BASE DRILL 1650W / 4-SPEED
The Holemaker PRO 110 is an extra heavy duty, large capacity machine capable of producing burr-free holes up to 110mm diameter by 110mm depth.
1650w motor with 4-speed mechanical gearbox produces superb torque through gear reduction in low speeds.
#4 morse taper spindle bore for use with taper shank drills.
Supplied complete with side mounted coolant system and arbor for use with 3/4 inch shank Holemaker Cutters up to 75mm diameter by 75mm depth of cut.
Optional arbor to take 1-1/4 inch shank cutters up to 110mm diameter by 110mm depth. 1L pressure feed coolant bottle available.
SPECIFICATIONS
Capacity (Diameter - max) 110mm
Capacity (Depth of Cut - max) 110mm
Capacity ( Twist Drills) #4 Morse Taper 47mm
Motor Input Power 1800 Watt
Motor Output Power 1650 Watt
Gearbox 4 Speed Heavy Duty 85/135/160/250RPM
Magnet Dead Lift 22000nm
Weight 31.0kg
